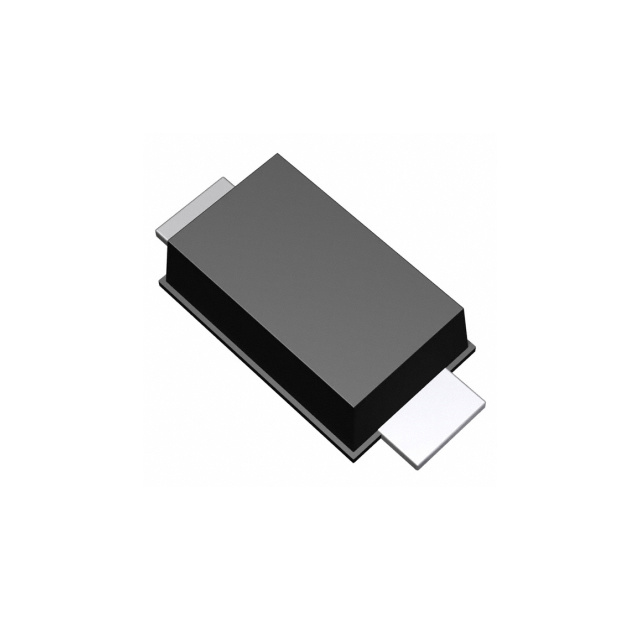

MA10EB045
ActiveKyocera AVX
DIODE SCHOTTKY 45V 10A DO221BC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA10EB045
ActiveKyocera AVX
DIODE SCHOTTKY 45V 10A DO221BC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA10EB045 |
|---|---|
| Current - Average Rectified (Io) | 10 A |
| Current - Reverse Leakage @ Vr | 600 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | DO-221BC, SMA Flat Leads Exposed Pad |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-221BC (MA) |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 540 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.74 | |
| 10 | $ 1.11 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.53 | |||
| Digi-Reel® | 1 | $ 1.74 | ||
| 10 | $ 1.11 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.53 | |||
| Tape & Reel (TR) | 3000 | $ 0.22 | ||
| 6000 | $ 0.21 | |||
| 9000 | $ 0.20 | |||
| 15000 | $ 0.19 | |||
| 21000 | $ 0.18 | |||
| 30000 | $ 0.17 | |||
Description
General part information
MA10 Series
Diode 45 V 10A Surface Mount DO-221BC (MA)
