173-60800

Active

HELLERMANNTYTON

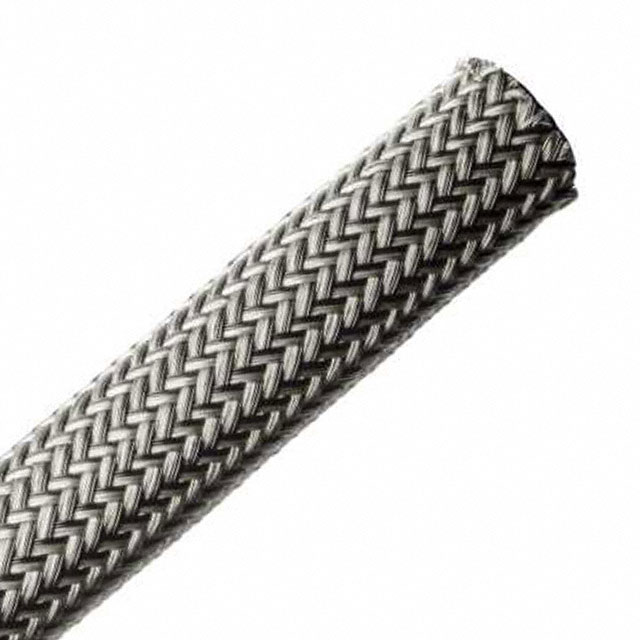

EXPAND SLEEVE 328' SILVER/BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

EXPAND SLEEVE 328' SILVER/BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	173-60800

Abrasion Protection	Abrasion Resistant
Color	Black, Silver
Diameter - Inside, Expanded [diameter]	0.433 in
Diameter - Inside, Expanded [diameter]	11 mm
Diameter - Outside, Non-Expanded [diameter]	0.315 in
Diameter - Outside, Non-Expanded [diameter]	8 mm
Features	Chemical Resistant, EMI Resistant, Self Extinguishing
Heat Protection	Flame Retardant
Length [x]	100 m
Length [x]	328 '
Material	Polybutylene Terephthalate (PBT) and Copper Tin Plated
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-40 °C
Type	Sleeve
Type Attributes	Expandable

Part	Type	Material Flammability Rating	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Features	Heat Protection	Material	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type Attributes	Color	Length [x]	Length [x]	Abrasion Protection	Operating Temperature [Min]	Operating Temperature [Max]
HELLERMANNTYTON 173-60800	Sleeve	UL94 V-0	0.315 in	8 mm	Chemical Resistant EMI Resistant Self Extinguishing	Flame Retardant	Polybutylene Terephthalate (PBT) and Copper Tin Plated	0.433 in	11 mm	Expandable	Black Silver	100 m	328 '	Abrasion Resistant	-40 °C	347 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	3	$ 949.90
