UCC28704EVM-724

Active

Texas Instruments

EVALUATION MODULE

Search across all available documentation for this part.

Active

Texas Instruments

EVALUATION MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Output Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Frequency - Switching	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Topology	Voltage - Start Up	Internal Switch(s)	Fault Protection	Supplier Device Package	Power - Output	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Current - Output	Voltage - Output	Utilized IC / Part	Supplied Contents	Outputs and Type	Outputs and Type	Regulator Topology
Texas Instruments UCC28704DBVT-1	Isolated	-40 °C	125 ¯C	Surface Mount	85 kHz	35 V	8.5 V	SOT-23-6	Flyback	21 V		Current Limiting Over Temperature Over Voltage Short Circuit	SOT-23-6
Texas Instruments UCC28704EVM-724														10 W	Fully Populated	85 VAC	265 VAC	AC/DC Primary Side	2 A	5 V	UCC28704	Board(s)	Isolated	1	Flyback

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 118.80

General part information

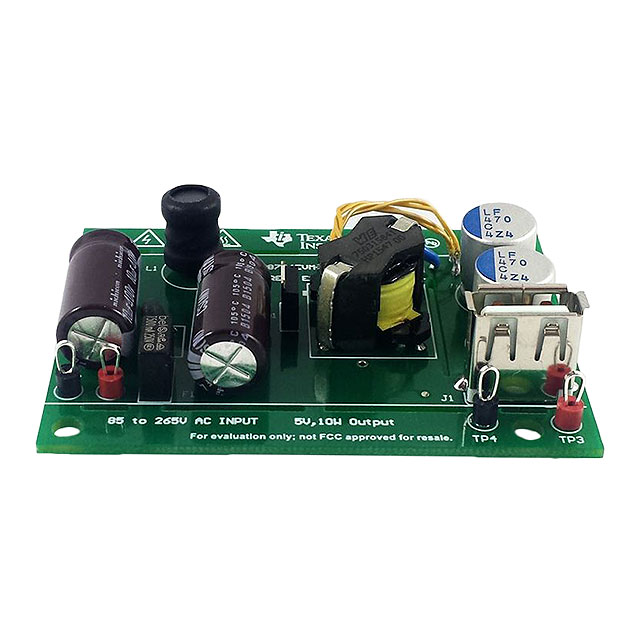

UCC28704 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
