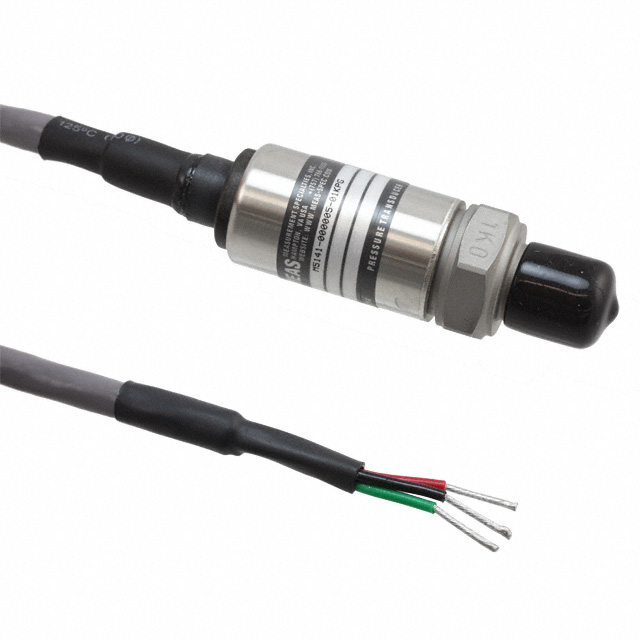

M5141-000005-01KPG

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 1000# PRES 1-5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M5141-000005-01KPG

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 1000# PRES 1-5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M5141-000005-01KPG

Accuracy	1 %
Applications	Industrial Automation
Features	Temperature Compensated
Maximum Pressure [Max]	2000 PSI
Maximum Pressure [Max]	13789.51 kPa
Operating Pressure	1000 PSI
Operating Pressure	6894.76 kPa
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	5 V
Output [Min]	1 V
Output Type	Analog Voltage
Package / Case	Cylinder
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Cable 2'
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	8 V

M5141 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Pressure Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Output Type	Output [Min]	Output [Max]	Features	Accuracy	Termination Style	Port Style	Operating Pressure [x]	Operating Pressure [x]	Maximum Pressure	Maximum Pressure
TE Connectivity Measurement Specialties M5141-000005-2K5PG	30 VDC	8 V	NPT	0.25 "	6.35 mm	Male	Vented Gauge	Cylinder	125 °C	-40 °C	2500 PSI	17236.89 kPa	5000 PSI	34473.79 kPa	Industrial Automation	Analog Voltage	1 V	5 V	Temperature Compensated	1 %	Cable 2'	Threaded
TE Connectivity Measurement Specialties M5141-000005-075PG	30 VDC	8 V	NPT	0.25 "	6.35 mm	Male	Vented Gauge	Cylinder	125 °C	-40 °C	75 PSI	517.11 kPa	150 PSI	1034.21 kPa	Industrial Automation	Analog Voltage	1 V	5 V	Temperature Compensated	1 %	Cable 2'	Threaded
TE Connectivity Measurement Specialties M5141-000005-100PG	30 VDC	8 V	NPT	0.25 "	6.35 mm	Male	Vented Gauge	Cylinder	125 °C	-40 °C	100 PSI	689.48 kPa	200 PSI	1378.95 kPa	Industrial Automation	Analog Voltage	1 V	5 V	Temperature Compensated	1 %	Cable 2'	Threaded
TE Connectivity Measurement Specialties M5141-000005-01KPG	30 VDC	8 V	NPT	0.25 "	6.35 mm	Male	Vented Gauge	Cylinder	125 °C	-40 °C	1000 PSI	6894.76 kPa	2000 PSI	13789.51 kPa	Industrial Automation	Analog Voltage	1 V	5 V	Temperature Compensated	1 %	Cable 2'	Threaded
TE Connectivity Measurement Specialties M5141-000005-250PG	30 VDC	8 V	NPT	0.25 "	6.35 mm	Male	Vented Gauge	Cylinder	125 °C	-40 °C	250 PSI	1723.69 kPa	500 PSI	3447.38 kPa	Industrial Automation	Analog Voltage	1 V	5 V	Temperature Compensated	1 %	Cable 2'	Threaded
TE Connectivity Measurement Specialties M5141-000005-10KPG	30 VDC	8 V	NPT	0.25 "	6.35 mm	Male	Vented Gauge	Cylinder	125 °C	-40 °C					Industrial Automation	Analog Voltage	1 V	5 V	Temperature Compensated	1 %	Cable 2'	Threaded	10000 PSI	68947.57 kPa	137895.15 kPa	20000 PSI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M5141 Series

TRANSDUCER 1000# PRES 1-5V
