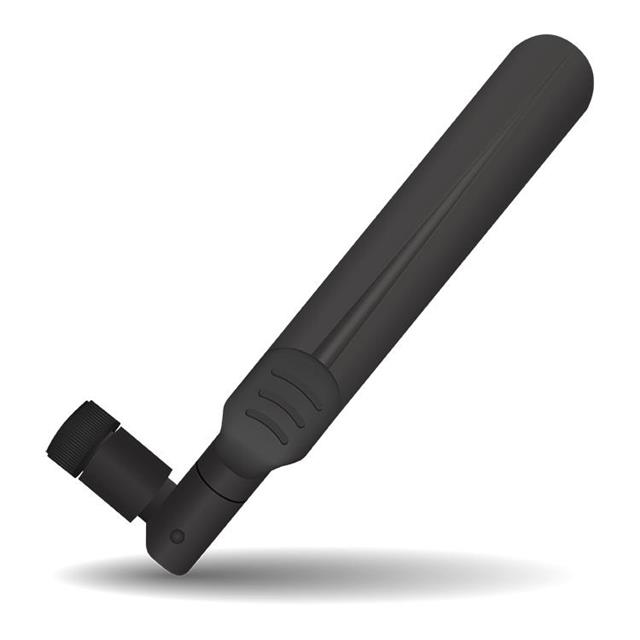

X9000294-W3DRMB
ActiveKyocera AVX
ANTENNA, BLADE WLAN RPSMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X9000294-W3DRMB
ActiveKyocera AVX
ANTENNA, BLADE WLAN RPSMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X9000294-W3DRMB |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency (Center/Band) | 2.4425 GHz, 5.5 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.85 GHz, 2.485 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz |
| Gain | 4.5 dBi, 3.2 dBi |
| Height (Max) | 157.5 mm |
| Height (Max) | 6.201 in |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Return Loss | -12 dB, -9 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | RP-SMA Male |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 60 | $ 7.22 | |
Description
General part information
X9000294 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Whip, Tilt RP-SMA Male Connector Mount
