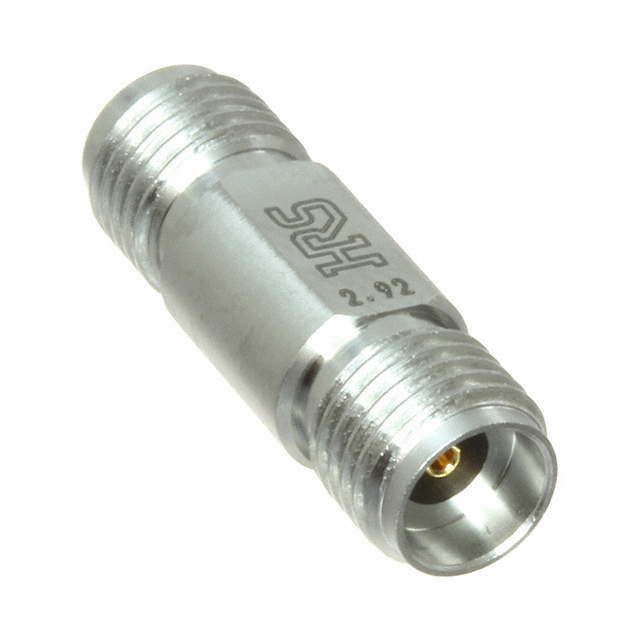

HK-A-JJ

Active

Hirose Electric USA, Inc.

ADAPTER JACK-JACK

Deep-Dive with AI

Search across all available documentation for this part.

Documents2.92mm Adapters RF Report Datasheet

HK-A-JJ

Active

Hirose Electric USA, Inc.

ADAPTER JACK-JACK

Deep-Dive with AI

Documents2.92mm Adapters RF Report Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HK-A-JJ

Adapter Series [Max]	2.92 mm
Adapter Series [Min]	2.92 mm
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	2.92 mm
Convert To (Adapter End)	OS-2.9 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE), Polyphenylene Oxide (PPO)
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Style	Straight

HK-A Series

Part	Power (Watts)	Impedance	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Attenuation Value	Attenuation Value [custom]	Style	Center Contact Material	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Center Gender	Dielectric Material	Adapter Series [Max]	Adapter Series [Min]	Center Contact Plating	Convert To (Adapter End)	Mating Cycles	Body Material	Conversion Type	Adapter Type	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)
Hirose Electric USA, Inc. HK-AT(20)-PJ	1 W	50 Ohms	2.92 mm	40 GHz	0 Hz	20 dB
Hirose Electric USA, Inc. HK-AT(4)-PJ	1 W	50 Ohms	2.92 mm	40 GHz	0 Hz	4 dB
Hirose Electric USA, Inc. HK-AT(7)-PJ	1 W	50 Ohms	2.92 mm	40 GHz	0 Hz
Hirose Electric USA, Inc. HK-AT(2)-PJ	1 W	50 Ohms	2.92 mm	40 GHz	0 Hz		2 dB
Hirose Electric USA, Inc. HK-A-PP		50 Ohms						Straight	Beryllium Copper Phosphor Bronze	40 GHz	105 ░C	-55 °C	Free Hanging (In-Line)	Male to Male	Polyphenylene Oxide (PPO) Polytetrafluoroethylene (PTFE)	2.92 mm	2.92 mm	Gold	2.92mm (OS-2.9) Plug Male Pin	1000	Stainless Steel	Same Series	Plug to Plug	2.92 mm
Hirose Electric USA, Inc. HK-AT(6)-PJ	1 W	50 Ohms	2.92 mm	40 GHz	0 Hz		6 dB
Hirose Electric USA, Inc. HK-A-JJ		50 Ohms						Straight	Beryllium Copper	40 GHz	105 ░C	-55 °C	Free Hanging (In-Line)	Female to Female	Polyphenylene Oxide (PPO) Polytetrafluoroethylene (PTFE)	2.92 mm	2.92 mm	Gold	OS-2.9 Jack Female Socket	1000	Stainless Steel	Same Series	Jack to Jack	2.92 mm	Jack Female Socket OS-2.9	2.92 mm
Hirose Electric USA, Inc. HK-AT(3)-PJ	1 W	50 Ohms	2.92 mm	40 GHz	0 Hz		3 dB
Hirose Electric USA, Inc. HK-AT(8)-PJ	1 W	50 Ohms	2.92 mm	40 GHz	0 Hz	8 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.93
		10	$ 66.79
		25	$ 60.73
		50	$ 56.64
		100	$ 52.95

Description

General part information

HK-A Series

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
