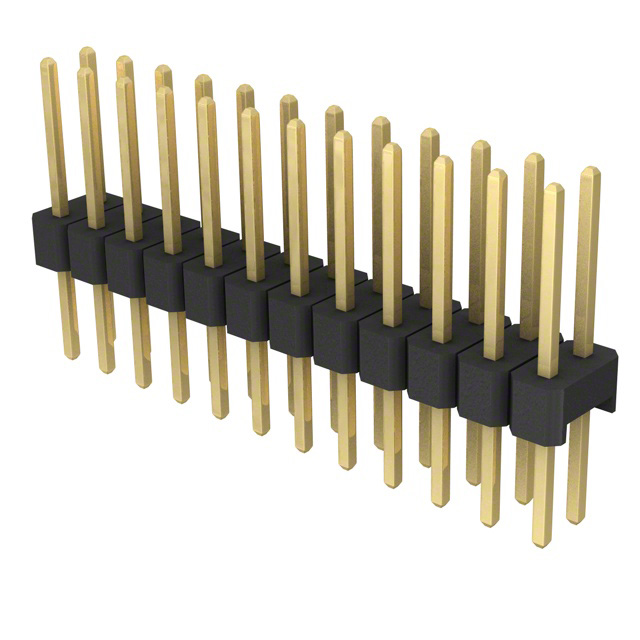

PRPC012DFBN-RC
ActiveSullins Connector Solutions
CONN HEADER VERT 24POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
PRPC012DFBN-RC
ActiveSullins Connector Solutions
CONN HEADER VERT 24POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC012DFBN-RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Length - Post | 0.22 in |
| Contact Length - Post | 5.58 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 16.17 mm |
| Overall Contact Length | 0.637 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC012 Series
| Part | Contact Length - Post | Contact Length - Post | Contact Length - Mating [x] | Contact Length - Mating | Mounting Type | Termination | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Number of Positions | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height [z] | Insulation Height [z] | Shrouding | Contact Finish - Mating | Contact Finish - Post | Number of Positions Loaded | Contact Material | Current Rating (Amps) | Contact Type | Material Flammability Rating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Finish Thickness - Post | Connector Type | Number of Rows | Style | Fastening Type | Overall Contact Length | Overall Contact Length | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Contact Length - Mating [x] | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 0.23 in | 5.84 mm | 0.23 in | 5.84 mm | Through Hole | Solder | 0.1 in | 2.54 mm | Flash | 24 | 2.54 mm | 0.1 in | 0.098 in | 2.5 mm | Unshrouded | Gold | Gold | All | Brass | 3 A | Male Pin | UL94 V-0 | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Black | Flash | Breakaway Header | 2 | Board to Board Cable | Push-Pull | 0.558 in | 14.18 mm | Square | ||||
Sullins Connector Solutions | 0.23 in | 5.84 mm | Through Hole | Solder | 0.1 in | 2.54 mm | Flash | 12 | 0.098 in | 2.5 mm | Unshrouded | Gold | Gold | All | Brass | 3 A | Male Pin | UL94 V-0 | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Black | Flash | Breakaway Header | 1 | Board to Board Cable | Push-Pull | 0.748 in | 19.01 mm | Square | 10.67 mm | 0.42 in | ||||||
Sullins Connector Solutions | 0.23 in | 5.84 mm | Through Hole Right Angle | Solder | 0.1 in | 2.54 mm | Flash | 12 | 0.098 in | 2.5 mm | Unshrouded | Gold | Gold | All | Brass | 3 A | Male Pin | UL94 V-0 | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Black | Flash | Breakaway Header | 1 | Board to Board Cable | Push-Pull | Square | 8.13 mm | 0.32 in | ||||||||
Sullins Connector Solutions | 0.23 in | 5.84 mm | Through Hole | Solder | 0.1 in | 2.54 mm | Flash | 24 | 2.54 mm | 0.1 in | 0.098 in | 2.5 mm | Unshrouded | Gold | Gold | All | Brass | 3 A | Male Pin | UL94 V-0 | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Black | Flash | Breakaway Header | 2 | Board to Board Cable | Push-Pull | 0.448 in | 11.39 mm | Square | 3.05 mm | 0.12 in | ||||
Sullins Connector Solutions | 0.22 in | 5.58 mm | 0.318 " | Through Hole | Solder | 0.1 in | 2.54 mm | Flash | 24 | 2.54 mm | 0.1 in | 0.098 in | 2.5 mm | Unshrouded | Gold | Gold | All | Brass | 3 A | Male Pin | UL94 V-0 | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Black | Flash | Breakaway Header | 2 | Board to Board Cable | Push-Pull | 0.637 in | 16.17 mm | Square | 8.08 mm | ||||
Sullins Connector Solutions | 0.318 " | Through Hole | Solder | 0.1 in | 2.54 mm | Flash | 24 | 2.54 mm | 0.1 in | 0.098 in | 2.5 mm | Unshrouded | Gold | Gold | All | Brass | 3 A | Male Pin | UL94 V-0 | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Black | Flash | Breakaway Header | 2 | Board to Board Cable | Push-Pull | 0.537 " | Square | 3.05 mm | 0.12 in | 8.08 mm | 13.63 mm | ||||
Sullins Connector Solutions | 0.23 in | 5.84 mm | Through Hole | Solder | 0.1 in | 2.54 mm | Flash | 12 | 0.098 in | 2.5 mm | Unshrouded | Gold | Gold | All | Brass | 3 A | Male Pin | UL94 V-0 | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Black | Flash | Breakaway Header | 1 | Board to Board Cable | Push-Pull | 0.448 in | 11.39 mm | Square | 3.05 mm | 0.12 in | ||||||
Sullins Connector Solutions | 0.23 in | 5.84 mm | Through Hole | Solder | 0.1 in | 2.54 mm | Flash | 12 | 0.098 in | 2.5 mm | Unshrouded | Gold | Gold | All | Brass | 3 A | Male Pin | UL94 V-0 | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Black | Flash | Breakaway Header | 1 | Board to Board Cable | Push-Pull | 0.648 in | 16.47 mm | Square | 8.13 mm | 0.32 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.67 | |
| 10 | $ 0.58 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.35 | |||
| 5000 | $ 0.30 | |||
| 10000 | $ 0.30 | |||
Description
General part information
PRPC012 Series
Connector Header Through Hole 24 position 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
