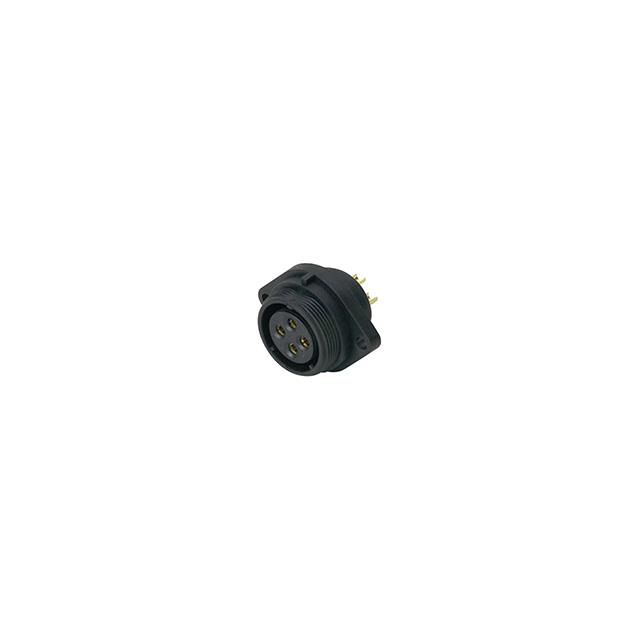

PD-SP2112-S33C

Active

Power Dynamics, Inc.

CONN RCPT FMALE 3POS SLDR CUP

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

CONN RCPT FMALE 3POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PD-SP2112-S33C

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	30 A
Features	Dust Cap
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded
Voltage Rating	500 VAC

Part	Voltage Rating	Contact Finish - Mating	Connector Type	Shell Material	Current Rating (Amps)	Ingress Protection	Features	Contact Material	Color	Material Flammability Rating	Shielding	Orientation	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Insert Material
Power Dynamics, Inc. PD-SP2112-S33C	500 VAC	Gold	Receptacle Female Sockets	Polyamide (PA66) Nylon 6/6	30 A	IP68 - Dust Tight Waterproof	Dust Cap	Brass	Black	UL94 V-0	Unshielded	Keyed	Bulkhead - Front Side Nut	-25 °C	85 °C	Plastic	Polyphenylene Sulfide (PPS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
