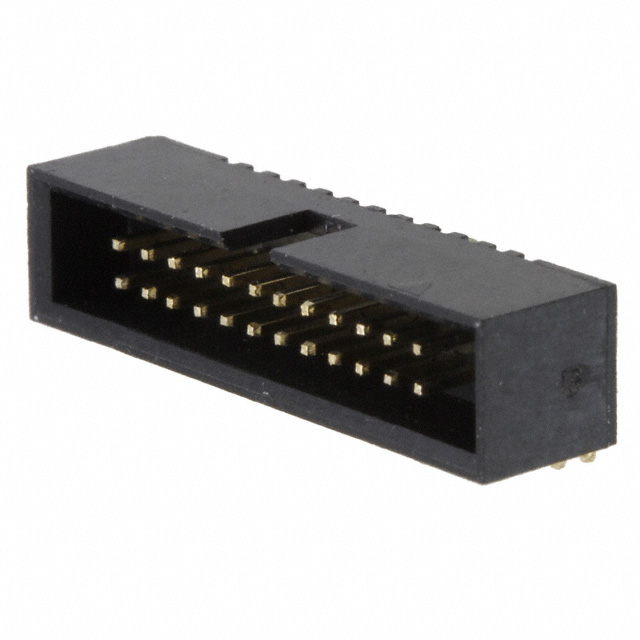

3220-24-0200-00
ObsoleteCnC Tech, LLC
CONN HEADER R/A 24POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
3220-24-0200-00
ObsoleteCnC Tech, LLC
CONN HEADER R/A 24POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3220-24-0200-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 0.083 in |
| Contact Length - Post | 2.11 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height [z] | 0.201 " |
| Insulation Height [z] | 5.1 mm |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
3220-24 Series
| Part | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Shrouding | Connector Type | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] | Contact Material | Termination | Number of Positions Loaded | Insulation Material | Contact Length - Post | Contact Length - Post | Contact Type | Number of Rows | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Style | Material Flammability Rating | Mounting Type | Fastening Type | Contact Shape | Insulation Color | Insulation Height | Contact Finish Thickness - Post | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | 0.05 in | 1.27 mm | 50 VAC | Shrouded - 4 Wall | Header | Keying Slot | 2.03 µm | 80 µin | 0.201 " | 5.1 mm | Brass | Solder | All | Nylon 6T Polyamide (PA6T) | 0.083 in | 2.11 mm | Male Pin | 2 | 0.05 in | 1.27 mm | -40 °C | 105 ░C | 24 | Board to Cable/Wire | UL94 V-0 | Through Hole Right Angle | Push-Pull | Square | ||||||
CnC Tech, LLC | 0.05 in | 1.27 mm | 50 VAC | Shrouded - 4 Wall | Header | Keying Slot | 0.213 in | Brass | Solder | All | Nylon 9T Polyamide (PA9T) | Male Pin | 2 | 0.05 in | 1.27 mm | -40 °C | 105 ░C | 24 | Board to Cable/Wire | UL94 V-0 | Surface Mount | Push-Pull | Square | Black | 5.4 mm | Flash | Gold | Flash | Gold | |||||
CnC Tech, LLC | 0.05 in | 1.27 mm | 50 VAC | Shrouded - 4 Wall | Header | Keying Slot | 2.03 µm | 80 µin | 0.213 in | Brass | Solder | All | Nylon 6T Polyamide (PA6T) | Male Pin | 2 | 0.05 in | 1.27 mm | -40 °C | 105 ░C | 24 | Board to Cable/Wire | UL94 V-0 | Surface Mount | Push-Pull | Square | Black | 5.4 mm | |||||||
CnC Tech, LLC | 0.05 in | 1.27 mm | 50 VAC | Shrouded - 4 Wall | Header | Keying Slot | 0.201 " | 5.1 mm | Brass | Solder | All | Nylon 9T Polyamide (PA9T) | 0.083 in | 2.11 mm | Male Pin | 2 | 0.05 in | 1.27 mm | -40 °C | 105 ░C | 24 | Board to Cable/Wire | UL94 V-0 | Through Hole Right Angle | Push-Pull | Square | Black | Flash | Gold | |||||
CnC Tech, LLC | 0.05 in | 1.27 mm | 50 VAC | Shrouded - 4 Wall | Header | Keying Slot | 2.03 µm | 80 µin | 0.213 in | Brass | Solder | All | Nylon 6T Polyamide (PA6T) | 0.083 in | 2.11 mm | Male Pin | 2 | 0.05 in | 1.27 mm | -40 °C | 105 ░C | 24 | Board to Cable/Wire | UL94 V-0 | Through Hole | Push-Pull | Square | 5.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3220-24 Series
Connector Header Through Hole, Right Angle 24 position 0.050" (1.27mm)
