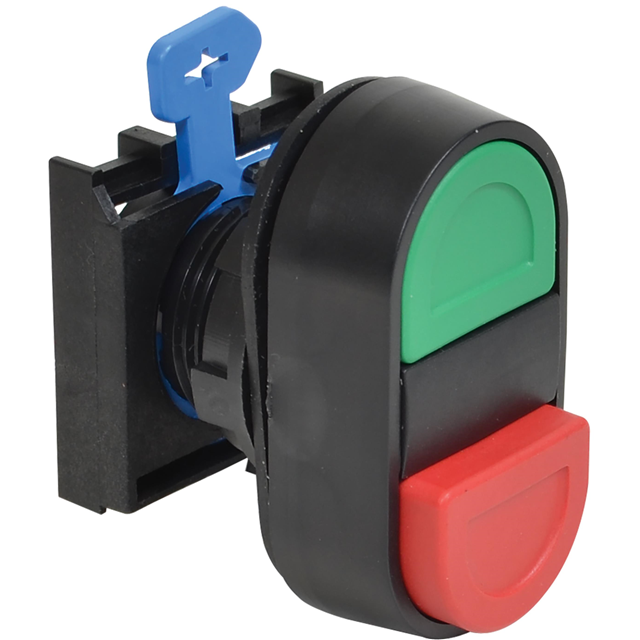

W22DPB-ERFG-01/10

Active

c3controls

22MM DPB EXTRD-B FLSHGN-T NCNO

Search across all available documentation for this part.

Active

c3controls

22MM DPB EXTRD-B FLSHGN-T NCNO

Technical Specifications

Parameters and characteristics for this part

Specification	W22DPB-ERFG-01/10

Actuator Marking	No Marking
Actuator Type	Button, Dual, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Green, Red
Current Rating (Amps)	2.5 A, 10 A
Ingress Protection	IP66
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22.5 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

Part	Color - Actuator/Cap	Voltage Rating - AC	Ingress Protection	Mounting Type	Current Rating (Amps)	Switch Function	Voltage Rating - DC	Circuit	Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Marking	Mechanical Life	Actuator Type
c3controls W22DPB-ERFG-01/10	Green Red	72 V	IP66	Panel Mount Rear	2.5 A 10 A	Off-Mom On-Mom	28 V	DPST-NO/NC	Standard	-40 °C	55 °C	Screw Terminal	22.5 mm	No Marking	5000000 Cycles	Button Dual Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.41

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Rear
