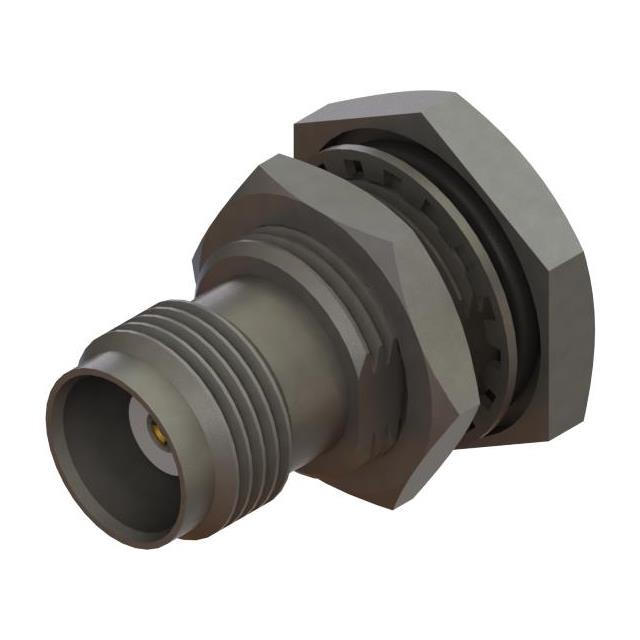

4021-00065

Active

Amphenol SV Microwave

CONN TNC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN TNC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	4021-00065

Body Finish	Tri-Alloy
Body Material	Brass
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-45 °C
Shield Termination	Solder

Part	Dielectric Material	Center Contact Plating	Body Finish	Contact Termination	Housing Color	Frequency - Max [Max]	Center Contact Material	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Connector Type	Number of Ports	Cable Group	Cable Group	Mating Cycles	Shield Termination	Includes	Connector Style	Mounting Feature
Amphenol SV Microwave 4021-00065	Polytetrafluoroethylene (PTFE)	Gold	Tri-Alloy	Solder	Silver	11 GHz	Beryllium Copper	Brass	120 °C	-45 °C	50 Ohms	Female Socket Jack	1	RG-402 (.141" Flexible)	0.141 in	500	Solder	1 Connector 1 Lockwasher 1 Nut	TNC	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
