SC1565I5M1.8TRT

Obsolete

Semtech Corporation

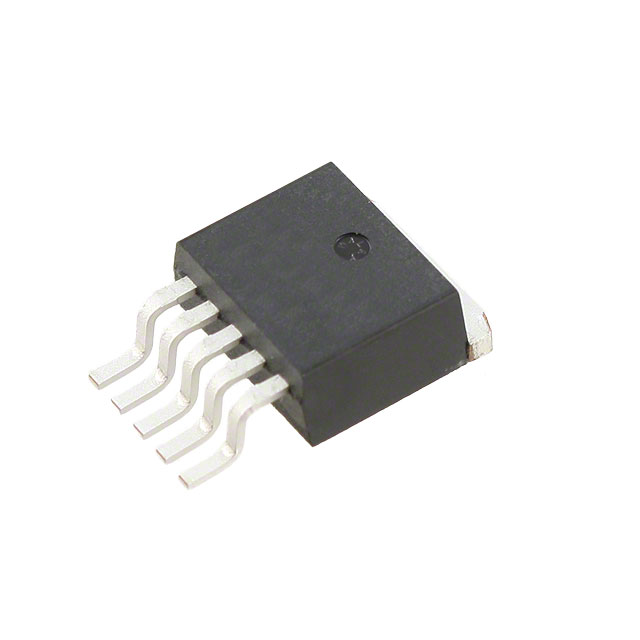

IC REG LINEAR 1.8V 1.5A TO263-5

Deep-Dive with AI

Search across all available documentation for this part.

SC1565I5M1.8TRT

Obsolete

Semtech Corporation

IC REG LINEAR 1.8V 1.5A TO263-5

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC1565I5M1.8TRT

Control Features	Enable
Current - Output	1.5 A
Current - Quiescent (Iq)	35 µA
Current - Supply (Max) [Max]	1.75 mA
Mounting Type	Surface Mount
Number of Regulators	1
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-263-6, TO-263BA, D2PAK (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
Supplier Device Package	TO-263-5
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1.8 V
Voltage Dropout (Max) [Max]	0.6 V

SC1565 Series

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Output Configuration	Voltage - Input (Max) [Max]	Control Features	Current - Quiescent (Iq)	Number of Regulators	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Voltage Dropout (Max) [Max]	Protection Features	Voltage - Output (Min/Fixed)	Mounting Type	Current - Output
Semtech Corporation SC1565IS-1.8TRT	1.81 mOhm	150 °C	-40 °C	1.75 mA	Positive	5.5 V	Enable	35 µA	1	8-SOIC	3.9 mm	0.154 in	8-SO	0.6 V	Over Current Over Temperature	1.8 V	Surface Mount	1.5 A
Semtech Corporation SC1565IM-2.5TRT	1.81 mOhm	150 °C	-40 °C	1.75 mA	Positive	5.5 V		35 µA	1	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA			TO-263	0.6 V	Over Current Over Temperature	2.5 V	Surface Mount	1.5 A
Semtech Corporation SC1565I5M2.5TRT	1.81 mOhm	150 °C	-40 °C	1.75 mA	Positive	5.5 V	Enable	35 µA	1	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA			TO-263-5	0.6 V	Over Current Over Temperature	2.5 V	Surface Mount	1.5 A
Semtech Corporation SC1565IS-2.5TRT	1.81 mOhm			1.75 mA	Positive	5.5 V	Enable	35 µA	1	8-SOIC	3.9 mm	0.154 in	8-SO	0.6 V	Over Current Over Temperature	2.5 V	Surface Mount	1.5 A
Semtech Corporation SC1565IT-2.5T	1.81 mOhm			1.75 mA	Positive	5.5 V		35 µA	1	TO-220-3			TO-220	0.6 V	Over Current Over Temperature	2.5 V	Through Hole	1.5 A
Semtech Corporation SC1565IST25TRT	1.81 mOhm			1.75 mA	Positive	5.5 V	Enable	35 µA	1	TO-261-4 TO-261AA			SOT-223-3	0.6 V	Over Current Over Temperature	2.5 V	Surface Mount	1.5 A
Semtech Corporation SC1565IST18TRT	1.81 mOhm			1.75 mA	Positive	5.5 V	Enable	35 µA	1	TO-261-4 TO-261AA			SOT-223-3	0.6 V	Over Current Over Temperature	1.8 V	Surface Mount	1.5 A
Semtech Corporation SC1565I5M1.8TRT	1.81 mOhm			1.75 mA	Positive	5.5 V	Enable	35 µA	1	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA			TO-263-5	0.6 V	Over Current Over Temperature	1.8 V	Surface Mount	1.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SC1565 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-263-5
