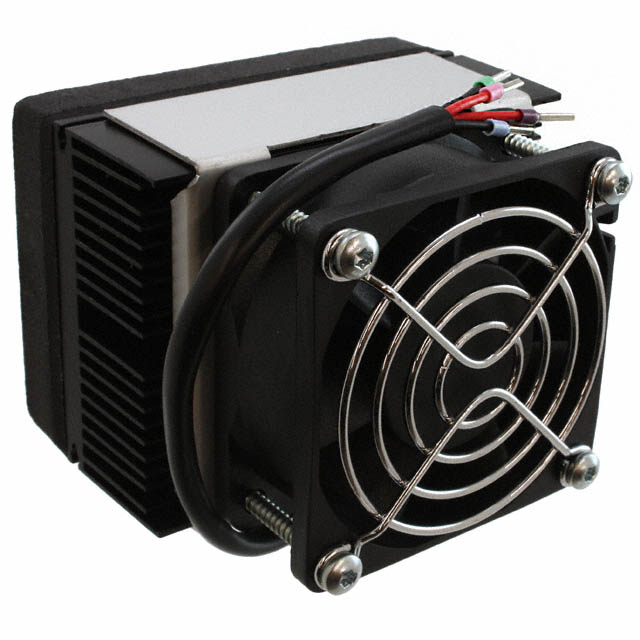

DA-024-24-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 24W
Deep-Dive with AI
Search across all available documentation for this part.
DA-024-24-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 24W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DA-024-24-02-00-00 |
|---|---|
| Current | 2 A |
| Dimensions - Overall [x] | 80 mm |
| Dimensions - Overall [y] | 60 mm |
| Dimensions - Overall [z] | 76.3 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Direct to Air |
| Operating Temperature [Max] | 48 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 24 W |
| Power - Input | 48 W |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 233.05 | |
| 5 | $ 219.04 | |||
| 10 | $ 213.27 | |||
| 25 | $ 205.87 | |||
Description
General part information
DA-024-24 Series
Direct to Air Thermoelectric Assembly 24 W
