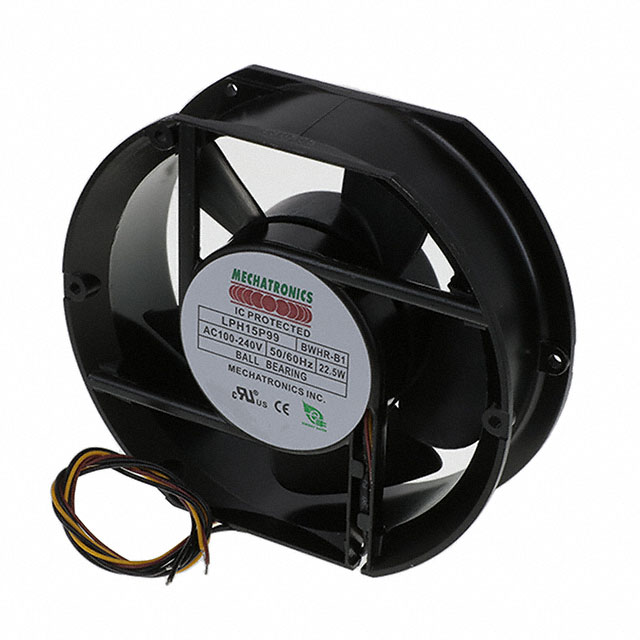

LPH15P99-BWHR-B1

Active

Mechatronics Bearing Group

EC FAN AXIAL 172 X 150 X 51MM W/

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

EC FAN AXIAL 172 X 150 X 51MM W/

Technical Specifications

Parameters and characteristics for this part

Specification	LPH15P99-BWHR-B1

Air Flow	6.38 mł/min
Air Flow	228 CFM
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Auto Restart, Electronic Commutation (EC)
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	55 dB
Power (Watts)	22.5 W
RPM	3200 RPM
Size / Dimension [custom]	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [y]	152 mm
Static Pressure	0.6 in H2O
Static Pressure	149.5 Pa
Termination	3 Wire Leads
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	100 VAC
Voltage Range [Max]	264 VAC
Voltage Range [Min]	90 VAC
Weight	725.7 g
Weight	1.6 lbs
Width [y]	51.5 mm

Part	Width [y]	Fan Type	Static Pressure	Static Pressure	Voltage - Rated [Min]	Voltage - Rated [Max]	Material - Blade	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Noise	Weight	Weight	Features	Current Rating (Amps)	Termination	RPM	Bearing Type	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [custom]	Air Flow	Air Flow	Ingress Protection	Voltage Range [Min]	Voltage Range [Max]
Mechatronics Bearing Group LPH15P99-BWHR	51.5 mm	Tubeaxial	0.6 in H2O	149.5 Pa	100 VAC	240 VAC	Plastic	CE cUL TUV UL	70 °C	70 °C	-40 °C	-40 °C	22.5 W	55 dB	725.7 g	1.6 lbs	Auto Restart Electronic Commutation (EC)	0.2 A	2 Wire Leads	3200 RPM	Ball	Aluminum	172 mm	152 mm	Rectangular/Rounded	6.38 mł/min	228 CFM
Mechatronics Bearing Group LPH15P99-BWHR-PC	51.5 mm	Tubeaxial	0.6 in H2O	149.5 Pa	100 VAC	240 VAC	Plastic						22.5 W	55 dB	725.7 g	1.6 lbs	Auto Restart Electronic Commutation (EC) Parylene Coating	0.2 A	2 Wire Leads	3200 RPM	Ball	Aluminum	172 mm	152 mm	Rectangular/Rounded	6.38 mł/min	228 CFM	IP55 - Dust Protected Water Resistant	90 VAC	264 VAC
Mechatronics Bearing Group LPH15P99-BWHR-B1	51.5 mm	Tubeaxial	0.6 in H2O	149.5 Pa	100 VAC	240 VAC	Plastic						22.5 W	55 dB	725.7 g	1.6 lbs	Auto Restart Electronic Commutation (EC) Speed Sensor (Tach)	0.2 A	3 Wire Leads	3200 RPM	Ball	Aluminum	172 mm	152 mm	Rectangular/Rounded	6.38 mł/min	228 CFM		90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 100 ~ 240VAC Rectangular/Rounded - 172mm L x 152mm H Ball 228.0 CFM (6.38m³/min) 3 Wire Leads
