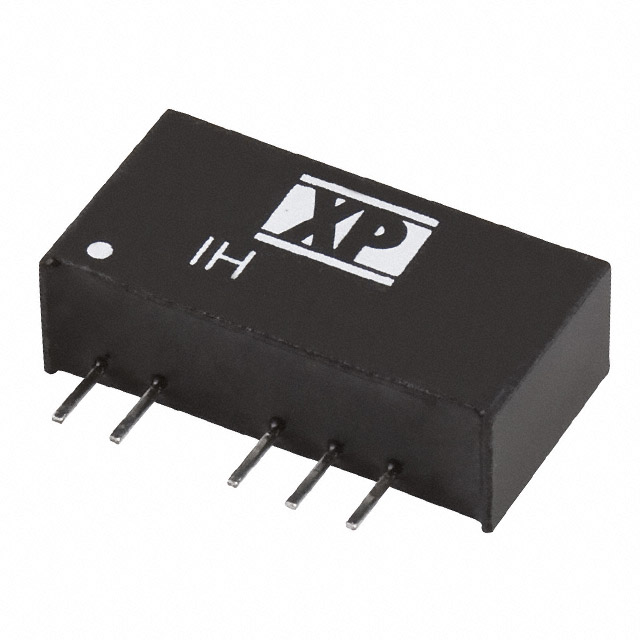

IH0505SH
ActiveXP POWER
DC DC CONVERTER +/-5V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IH0505SH
ActiveXP POWER
DC DC CONVERTER +/-5V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IH0505SH |
|---|---|
| Applications | ITE (Commercial) |
| Efficiency | 72 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 20 | $ 10.29 | |
Description
General part information
IH0505 Series
Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 4.5V - 5.5V Input
