KBTAAT0-E010SN-0000

Active

ODU

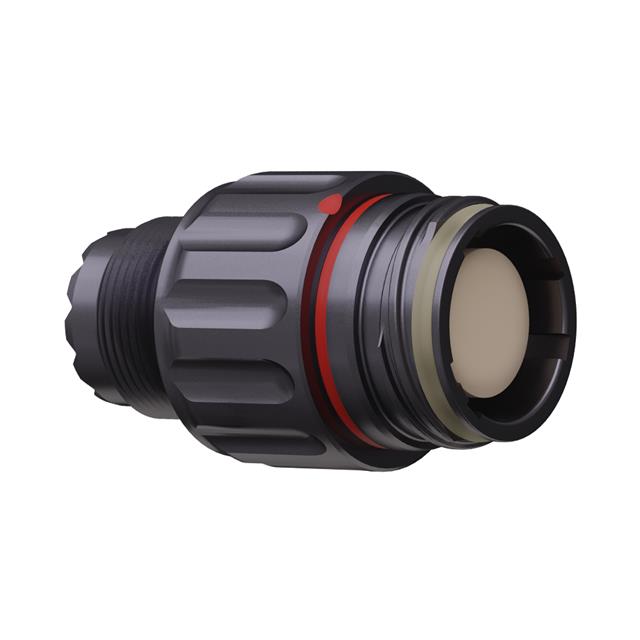

ODU AMC SERIES T IN-LINE RECEPTA

Search across all available documentation for this part.

Active

ODU

ODU AMC SERIES T IN-LINE RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	KBTAAT0-E010SN-0000

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Threaded, Push-Pull
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Tin Nickel
Shell Material	Aluminum
Shell Size - Insert	9
Shielding	Shielded
Termination	Crimp
Voltage Rating	50 V

Part	Fastening Type	Color	Shell Finish	Contact Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Mounting Type	Shell Size - Insert	Primary Material	Insert Material	Shell Material	Termination	Material Flammability Rating	Number of Positions	Shielding	Contact Finish - Mating	Connector Type
ODU KBTAAT0-E010SN-0000	Push-Pull Threaded	Silver	Tin Nickel	Copper Alloy	A	-65 ░C	347 °F	IP68 IP69K	50 V	Backshell Coupling Nut	1.27 µm	50 µin	5 A	Free Hanging (In-Line)	9	Metal	Polyetheretherketone (PEEK)	Aluminum	Crimp	UL94 V-0	10	Shielded	Gold	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Female Sockets Crimp
