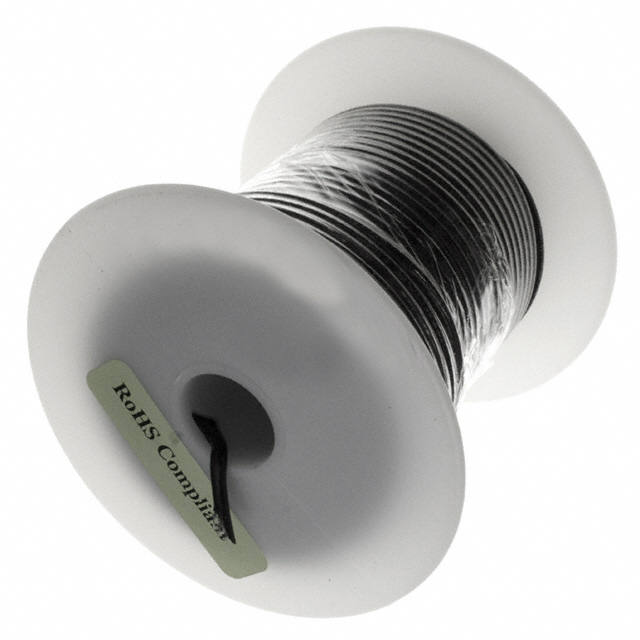

C1156.41.01 - C1156.21.01

C1156.41.01

Active
Prysmian Group

CABLE COAXIAL RG174 26AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
C1156.41.01 - C1156.21.01

C1156.41.01

Active
Prysmian Group

CABLE COAXIAL RG174 26AWG

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationC1156.41.01
Cable GroupRG-174
Cable TypeCoaxial
Conductor MaterialSteel, Copper Coated
Conductor Strand34 AWG, 7 Strands
Dielectric Diameter [diameter]1.52 mm
Dielectric Diameter [diameter]0.06 in
Dielectric MaterialSolid Polyethylene (PE)
Impedance50 Ohms
Jacket (Insulation) Diameter [diameter]2.62 mm
Jacket (Insulation) Diameter [diameter]0.103 in
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket ColorBlack
Length304.8 m
Length1000 ft
Shield MaterialCopper, Tinned
Shield TypeBraid
UsageVideo, RF Signal
Wire Gauge0.14 mm²
Wire Gauge26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 1$ 271.19
2$ 257.94
3$ 250.46
5$ 241.28
7$ 235.39
10$ 229.27
25$ 214.14

Description

General part information

C1156 Series

Coaxial Cable 26 AWG (0.14mm²) RG-174 1000.0' (304.80m) 50 Ohms
