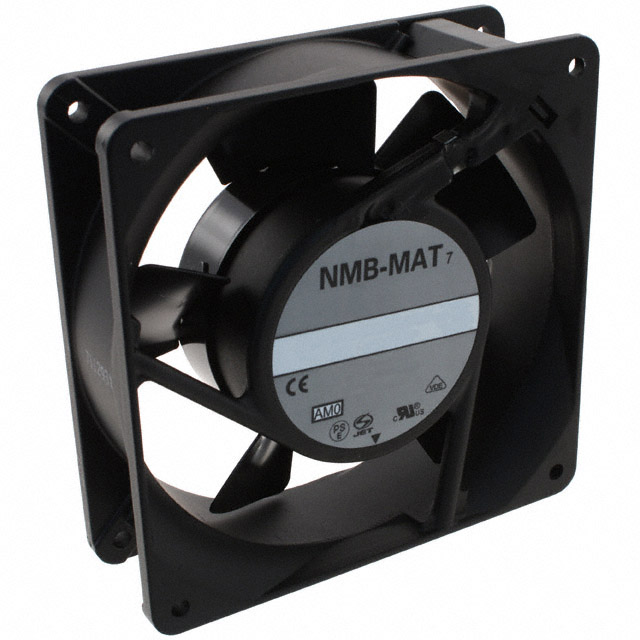

4715TS-12T-B50-AM0

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFan Agency Approvals Datasheet +1

4715TS-12T-B50-AM0

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38MM 115VAC TERM

Deep-Dive with AI

DocumentsFan Agency Approvals Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4715TS-12T-B50-AM0

Air Flow	3.26 m³/min
Air Flow	116.5 CFM
Approval Agency	UL, VDE, CE
Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Steel
Material - Frame	Aluminum
Noise	50 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	17 W
RPM	3100 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.4 in H2O
Static Pressure	99.6 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	1.4 lbs
Weight	635 g
Width [y]	38 mm

4715TS Series

Part	Voltage - Rated	Bearing Type	Material - Frame	Power (Watts)	Weight	Weight	Material - Blade	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Lifetime @ Temp.	Static Pressure	Static Pressure	Current Rating (Amps)	Approval Agency	Termination	Fan Type	RPM	Noise	Width [y]	Air Flow	Air Flow	Air Flow	Ingress Protection
NMB TECHNOLOGIES 4715TS-20T-B50-BM0	200 VAC	Ball	Aluminum	17 W	1.4 lbs	635 g	Steel	119 mm	119 mm	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	0.4 in H2O	99.6 Pa	0.17 A	CE UL VDE	2 Terminals	Tubeaxial	3100 RPM	50 dB(A)	38 mm	116.5 CFM	3.26 m³/min
NMB TECHNOLOGIES 4715TS-20T-B5A-B00	200 VAC	Ball	Aluminum	17 W	1.3 lbs	589.7 g	Steel	119 mm	119 mm	-10 °C	-10 °C	65 °C	65 °C	50000 Hrs	0.4 in H2O	99.6 Pa	0.17 A	CE UL VDE	2 Terminals	Tubeaxial	3100 RPM	50 dB(A)	38 mm		3.26 m³/min	116.5 CFM
NMB TECHNOLOGIES 4715TS-23T-B5A-A00	230 VAC	Ball	Aluminum	17 W	1.3 lbs	589.7 g	Steel	119 mm	119 mm	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	0.4 in H2O	99.6 Pa	140 mA	CE UL VDE	2 Terminals	Tubeaxial	3100 RPM	50 dB(A)	38 mm		3.26 m³/min	116.5 CFM
NMB TECHNOLOGIES 4715TS-10T-B5A-B00	100 VAC	Ball	Aluminum	17 W	1.3 lbs	589.7 g	Steel	119 mm	119 mm	-10 °C	-10 °C	65 °C	65 °C	50000 Hrs	0.4 in H2O	99.6 Pa	0.34 A	CE UL VDE	2 Terminals	Tubeaxial	3100 RPM	50 dB(A)	38 mm	116.5 CFM	3.26 m³/min
NMB TECHNOLOGIES 4715TS-12T-B5A-A00	115 VAC	Ball	Aluminum	17 W	1.3 lbs	589.7 g	Steel	119 mm	119 mm	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	0.4 in H2O	99.6 Pa		CE UL VDE	2 Terminals	Tubeaxial	3100 RPM	50 dB(A)	38 mm		3.26 m³/min	116.5 CFM
NMB TECHNOLOGIES 4715TS-10T-B50-BM0	100 VAC	Ball	Aluminum	17 W	1.4 lbs	635 g	Steel	119 mm	119 mm	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	0.4 in H2O	99.6 Pa	0.34 A	CE UL VDE	2 Terminals	Tubeaxial	3100 RPM	50 dB(A)	38 mm	116.5 CFM	3.26 m³/min
NMB TECHNOLOGIES 4715TS-22T-B5A-B00	220 VAC	Ball	Aluminum	17 W	1.3 lbs	589.7 g	Steel	119 mm	119 mm	-10 °C	-10 °C	65 °C	65 °C	50000 Hrs	0.4 in H2O	99.6 Pa	150 mA	CE UL VDE	2 Terminals	Tubeaxial	3100 RPM	50 dB(A)	38 mm	116.5 CFM	3.26 m³/min
NMB TECHNOLOGIES 4715TS-23T-B50-AM0	230 VAC	Ball	Aluminum	17 W	1.4 lbs	635 g	Steel	119 mm	119 mm	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	0.4 in H2O	99.6 Pa	140 mA	CE UL VDE	2 Terminals	Tubeaxial	3100 RPM	50 dB(A)	38 mm		3.26 m³/min	116.5 CFM	IP54 - Dust Protected Water Resistant
NMB TECHNOLOGIES 4715TS-12T-B50-AM0	115 VAC	Ball	Aluminum	17 W	1.4 lbs	635 g	Steel	119 mm	119 mm	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	0.4 in H2O	99.6 Pa		CE UL VDE	2 Terminals	Tubeaxial	3100 RPM	50 dB(A)	38 mm		3.26 m³/min	116.5 CFM	IP54 - Dust Protected Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4715TS Series

Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 116.5 CFM (3.26mł/min) 2 Terminals
