SS-050505-FFM-YS001

Active

Amphenol LTW

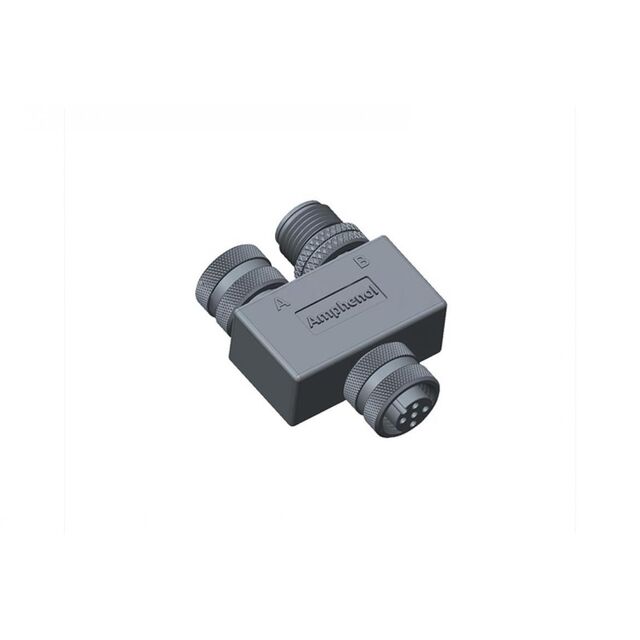

CONN Y-ADPT 5P-5/5P F-F/M INLINE

Search across all available documentation for this part.

Active

Amphenol LTW

CONN Y-ADPT 5P-5/5P F-F/M INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SS-050505-FFM-YS001

Connector Style	Distributor Y-Shaped
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Female Sockets (1), Male Pins (1)
Current Rating (Amps)	4 A
Features	Coupling Nut
Housing Color	Black
Housing Material	Polyurethane
Housing Material	PUR
Includes	1 Adapter, 2 O-Rings
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	5
Number of Positions (Convert To)	5
Number of Positions (Convert To)	2
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Voltage Rating	Mounting Type	Housing Material	Housing Material	Includes	Convert From (Adapter End)	Convert To (Adapter End)	Number of Positions (Convert To)	Number of Positions (Convert To)	Current Rating (Amps)	Shell Size - Insert (Convert To) [custom]	Housing Color	Number of Positions (Convert From)	Features	Orientation (Convert To)	Ingress Protection	Shell Size - Insert (Convert From)	Shielding	Orientation (Convert From)	Connector Style
Amphenol LTW SS-050505-FFF-TS001	60 VDC	Free Hanging (In-Line)	Polyurethane	PUR	1 Adapter 3 O-Rings	Female Sockets	Female Sockets (2)	5	2	4 A	M12	Black	5	Coupling Nut	A	IP68 - Dust Tight Waterproof	M12	Unshielded	A	Distributor T-Shaped
Amphenol LTW SS-050505-MFM-TS001	60 VDC	Free Hanging (In-Line)	Polyurethane	PUR	Adapter O-Ring	Male Pins	Female Sockets (1) Male Pins (1)	5	2	4 A	M12	Black	5	Coupling Nut	A	IP68 - Dust Tight Waterproof	M12	Unshielded	A	Distributor T-Shaped
Amphenol LTW SS-050505-FFM-YS001	60 VDC	Free Hanging (In-Line)	Polyurethane	PUR	1 Adapter 2 O-Rings	Female Sockets	Female Sockets (1) Male Pins (1)	5	2	4 A	M12	Black	5	Coupling Nut	A	IP68 - Dust Tight Waterproof	M12	Unshielded	A	Distributor Y-Shaped

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 17.85

General part information

Circular Connector Distributor Y-Shaped 5/5 (2) Female Sockets/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)
