2PB1424,115

Active

Freescale Semiconductor - NXP

TRANS PNP 20V 3A SOT89

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

TRANS PNP 20V 3A SOT89

Technical Specifications

Parameters and characteristics for this part

Specification	2PB1424,115

Current - Collector (Ic) (Max) [Max]	3 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	180 hFE
Frequency - Transition	125 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	TO-243AA
Power - Max [Max]	2 W
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	20 V

Part	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Transistor Type	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Cutoff (Max) [Max]	Package / Case	Mounting Type	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic
Freescale Semiconductor - NXP 2PB1424,115	125 MHz	180 hFE	3 A	150 °C	PNP	20 V	100 nA	TO-243AA	Surface Mount	2 W	500 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

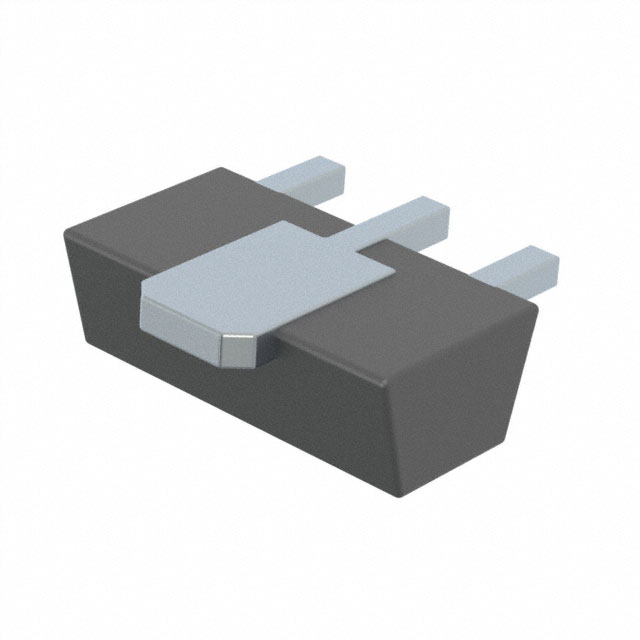

Bipolar (BJT) Transistor PNP 20 V 3 A 125MHz 2 W Surface Mount SOT-89
