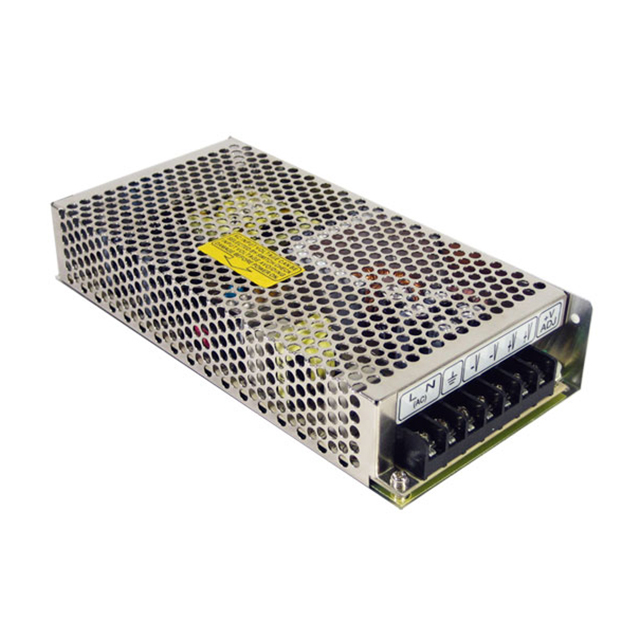

RS-150-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RS-150-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RS-150-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 12.5 A |
| Efficiency | 83 % |
| Features | Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 199 mm |
| Size / Dimension [x] | 7.83 in |
| Size / Dimension [y] | 3.86 in |
| Size / Dimension [y] | 98 mm |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 373 VDC, 132 VAC |
| Voltage - Input [Min] | 248 VDC, 88 VAC, 176 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.63 | |
| 5 | $ 29.80 | |||
| 10 | $ 29.04 | |||
| 25 | $ 28.07 | |||
Description
General part information
RS-150 Series
Enclosed AC DC Converters 1 Output 12V 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC Input
