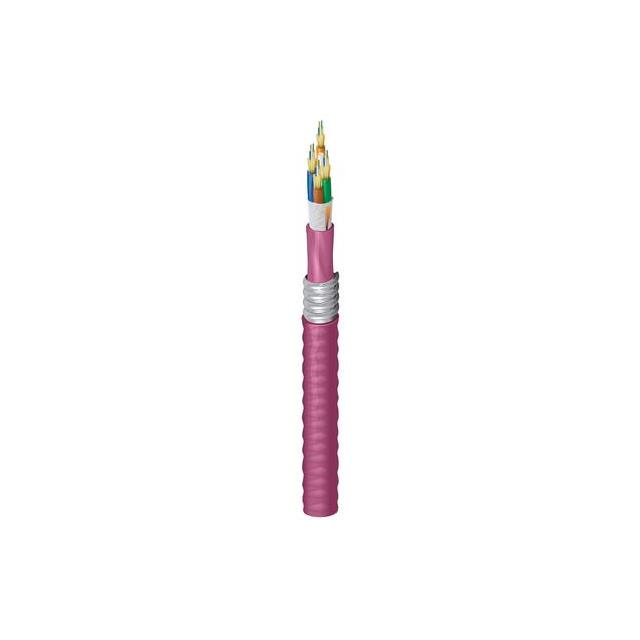

FI4D024FJ

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI4D024FJ

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	24
Features	Armored
Jacket (Insulation) Diameter [diameter]	23.62 mm
Jacket (Insulation) Diameter [diameter]	0.93 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Violet
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFCR
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Multimode

Part	Type	Tensile Strength	Jacket (Insulation) Material	Features	Features	Core Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Style	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Cladding Diameter [diameter]
Belden Inc. FI4D024R9	Multimode	40.8 kg	Poly-Vinyl Chloride (PVC)	24	Rip Cord	50 µm	-20 C	70 °C	Multiple Fibers	OFNR	8.26 mm	0.325 in	Violet	125 µm
Belden Inc. FI4D024AJA	Multimode	40.8 kg	Poly-Vinyl Chloride (PVC)	24	Armored	50 µm	0 °C	70 °C	Multiple Fibers	OFCP	21.36 mm	0.841 in	Aqua	125 µm
Belden Inc. FI4D024L9
Belden Inc. FI4D024P9
Belden Inc. FI4D024R9A	Multimode	40.8 kg	Poly-Vinyl Chloride (PVC)	24	Rip Cord	50 µm	-20 C	70 °C	Multiple Fibers	OFNR	8.26 mm	0.325 in	Aqua	125 µm
Belden Inc. FI4D024A9A	Multimode	40.8 kg	Poly-Vinyl Chloride (PVC)	24	Armored	50 µm	0 °C	70 °C	Multiple Fibers	OFCP	14.73 mm	0.58 "	Aqua	125 µm
Belden Inc. FI4D024FJ	Multimode	40.8 kg	Poly-Vinyl Chloride (PVC)	24	Armored	50 µm	-20 C	70 °C	Multiple Fibers	OFCR	23.62 mm	0.93 in	Violet	125 µm
Belden Inc. FI4D024FJA	Multimode	40.8 kg	Poly-Vinyl Chloride (PVC)	24	Armored	50 µm	-20 C	70 °C	Multiple Fibers	OFCR	23.62 mm	0.93 in	Aqua	125 µm
Belden Inc. FI4D024F9	Multimode	40.8 kg	Poly-Vinyl Chloride (PVC)	24	Armored	50 µm	-20 C	70 °C	Multiple Fibers	OFCR	15.24 mm	0.6 in	Violet	125 µm
Belden Inc. FI4D024P9A	Multimode	40.8 kg	Poly-Vinyl Chloride (PVC)	24	Rip Cord	50 µm	0 °C	70 °C	Multiple Fibers	OFNP	8.38 mm	0.33 in	Aqua	125 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 9.35

General part information

Fiber Optic Cable Violet Multimode 125µm
