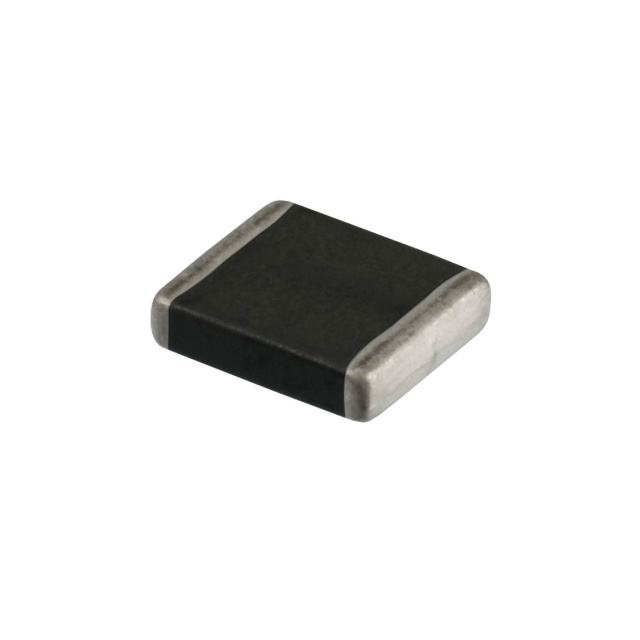

PV250K3225T
ActiveStackpole Electronics Inc
MLV, 250V (VRMS), 10%, 3225, 400
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PV250K3225T
ActiveStackpole Electronics Inc
MLV, 250V (VRMS), 10%, 3225, 400
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PV250K3225T |
|---|---|
| Capacitance @ Frequency | 80 pF |
| Current - Surge | 400 A |
| Energy | 11 J |
| Maximum AC Volts [Max] | 250 V |
| Maximum DC Volts [Max] | 320 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3225 |
| Package / Case | 8063 Metric |
| Varistor Voltage (Max) [Max] | 429 V |
| Varistor Voltage (Min) [Min] | 351 V |
| Varistor Voltage (Typ) | 390 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10000 | $ 0.31 | |
Description
General part information
PV250 Series
390 V 400 A Varistor 1 Circuit Surface Mount, MLCV 3225 (8063 Metric)
