N6L50T0C-301-3030

Active

Amphenol Piher Sensing Systems

TRIMMER 300 OHM 0.1W PC PIN TOP

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 300 OHM 0.1W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Power (Watts)	Resistance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Termination Style	Resistive Material	Adjustment Type	Number of Turns	Mounting Type	Temperature Coefficient
Amphenol Piher Sensing Systems N6L50T0C-472-3030	0.1 W	0.1 W	4.7 kOhms	0.252 "	6.4 mm	8.7 mm	0.343 in	30 %	PC Pins	Carbon	Top Adjustment	1	Through Hole	300 ppm/°C
Amphenol Piher Sensing Systems N6L50T8S-103A3030R-E	0.1 W	0.1 W	10000 Ohms	0.252 "	6.4 mm	8.7 mm	0.343 in	30 %	PC Pins	Carbon	Top Adjustment	1	Through Hole	300 ppm/°C
Amphenol Piher Sensing Systems N6L50T0C-105	0.1 W	0.1 W	1 MOhms	0.252 "	6.4 mm	8.7 mm	0.343 in	30 %	PC Pins	Carbon	Top Adjustment	1	Through Hole	300 ppm/°C
Amphenol Piher Sensing Systems N6L50T0C-203	0.1 W	0.1 W	20 kOhms	0.252 "	6.4 mm	8.7 mm	0.343 in	30 %	PC Pins	Carbon	Top Adjustment	1	Through Hole	300 ppm/°C
Amphenol Piher Sensing Systems N6L50T0C-301-3030	0.1 W	0.1 W	300 Ohms	0.252 "	6.4 mm	8.7 mm	0.343 in	30 %	PC Pins	Carbon	Top Adjustment	1	Through Hole	300 ppm/°C
Amphenol Piher Sensing Systems N6L50T0S-503A3030R-E	0.1 W	0.1 W	50 kOhms	0.252 "	6.4 mm	8.7 mm	0.343 in	30 %	PC Pins	Carbon	Top Adjustment	1	Through Hole	300 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

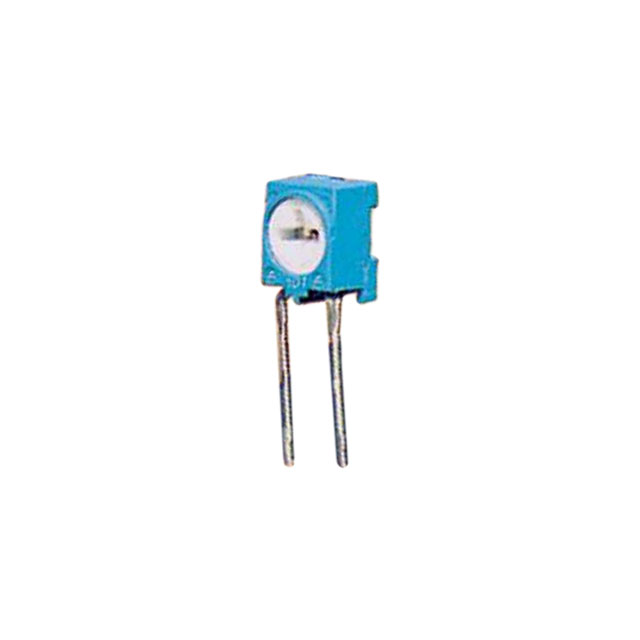

300 Ohms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment

Technical documentation and resources
