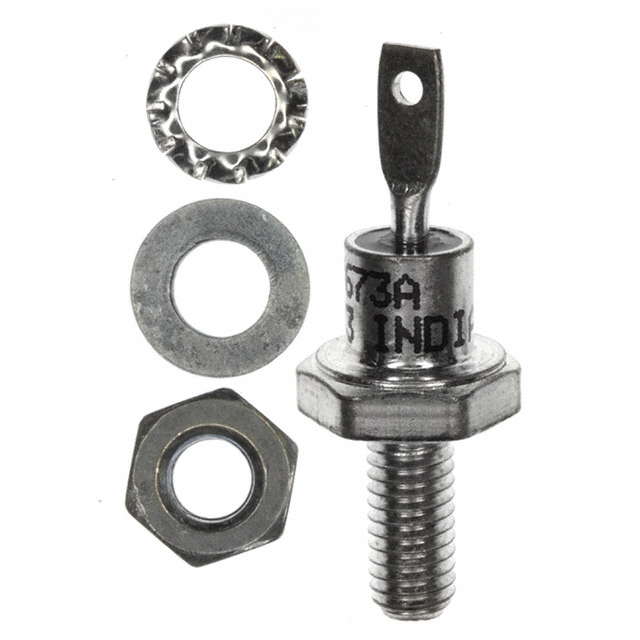

VS-1N3673A

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 1KV 12A DO203AA

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 1KV 12A DO203AA

Technical Specifications

Parameters and characteristics for this part

Specification	VS-1N3673A

Current - Average Rectified (Io)	12 A
Current - Reverse Leakage @ Vr	600 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-203AA
Supplier Device Package	DO-4
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1.35 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Package / Case	Technology	Current - Average Rectified (Io)	Mounting Type	Supplier Device Package	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Vishay General Semiconductor - Diodes Division VS-1N3673A	1000 V	Standard Recovery >500ns	200 mA	1.35 V	DO-203AA DO-4 Stud	Standard	12 A	Chassis Stud Mount	DO-203AA	DO-4	600 µA	200 C	-65 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1000 V 12A Chassis, Stud Mount DO-203AA (DO-4)
