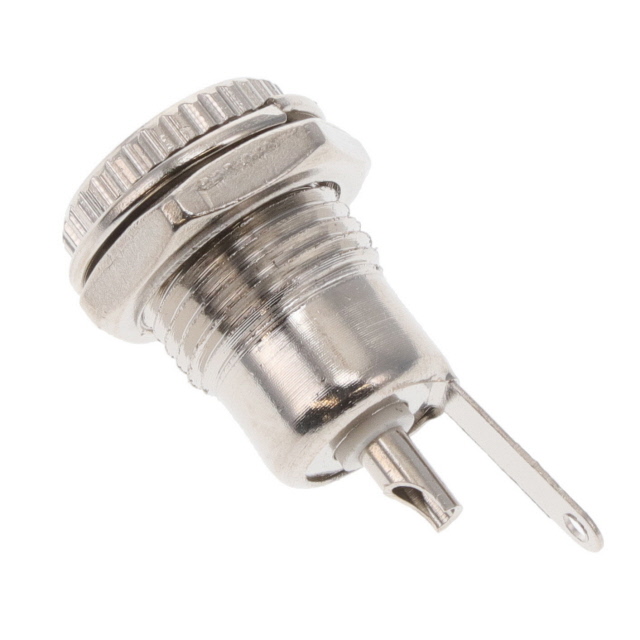

JACK-L-PANEL-8A(R)
ActiveGlobTek, Inc.
CONN PWR JACK 2.50MMX5.50MM SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JACK-L-PANEL-8A(R) |
|---|---|
| Actual Diameter [diameter] | 0.098 ", 0.224 in |
| Actual Diameter [diameter] | 2.5 mm, 5.7 mm |
| Body Color | Silver |
| Connector Type | Jack |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 8 A |
| Features | Mounting Hardware |
| Gender | Male |
| Housing Material | Brass |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination | Solder Cup, Solder Eyelet |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.68 | |
| 10 | $ 2.27 | |||
| 25 | $ 2.13 | |||
| 50 | $ 2.03 | |||
| 100 | $ 1.93 | |||
| 250 | $ 1.81 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.64 | |||
| 3000 | $ 1.52 | |||
Description
General part information
JACK-L Series
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount
