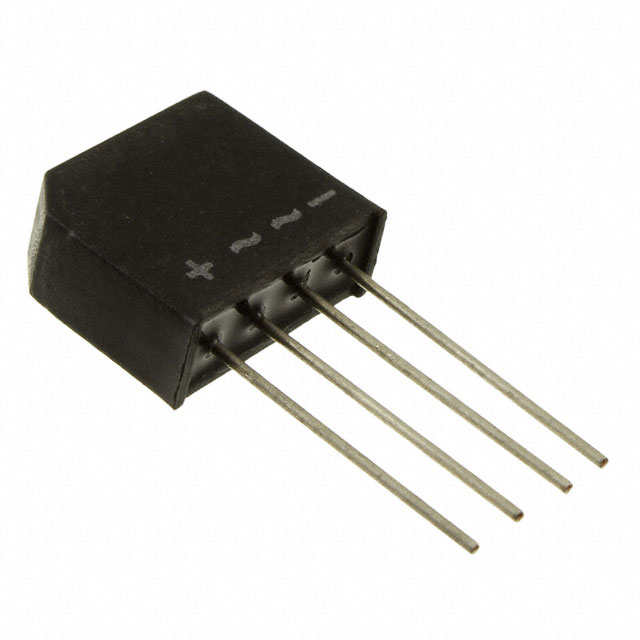

VS-2KBP02

Active

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 1PHASE 200V 2A D-44

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 1PHASE 200V 2A D-44

Technical Specifications

Parameters and characteristics for this part

Specification	VS-2KBP02

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SIP, D-44
Supplier Device Package	D-44
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	200 V

Part	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Reverse Leakage @ Vr	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Average Rectified (Io)	Diode Type	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package
Vishay General Semiconductor - Diodes Division 2KBP02M-M4/51	1.1 V	Standard	5 µA	Through Hole	4-SIP KBPM	-55 °C	165 °C	2 A	Single Phase	200 V	KBPM
Vishay General Semiconductor - Diodes Division 2KBP02M/1	1.1 V	Standard	5 µA	Through Hole	4-SIP KBPM	-55 °C	165 °C	2 A	Single Phase	200 V	KBPM
Vishay General Semiconductor - Diodes Division VS-2KBP02	1 V	Standard	10 µA	Through Hole	4-SIP D-44	-40 °C	150 °C	2 A	Single Phase	200 V	D-44

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 200 V Through Hole D-44
