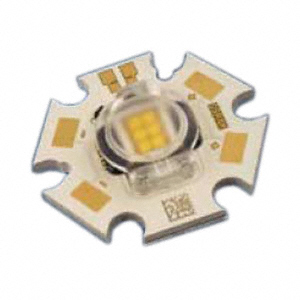

LE CW E3B-NZQX-MRNU

Obsolete

ams-OSRAM USA INC.

LED MOD OSTAR WHT STARBRD 4500K

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED MOD OSTAR WHT STARBRD 4500K

Technical Specifications

Parameters and characteristics for this part

Specification	LE CW E3B-NZQX-MRNU

Color	Neutral, White
Configuration	Starboard
CRI (Color Rendering Index)	80
Current - Max [Max]	1 A
Height [z]	5.25 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	2 mm
Lumens/Watt @ Current - Test	42 lm/W
Luminous Flux @ Current/Temperature	605 lm
Size / Dimension [diameter]	19.9 mm
Type	LED Module
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	20.8 V

Part	Height [z]	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Viewing Angle	Lens Type	Type	Configuration	Size / Dimension [diameter]	Current - Max [Max]	Color	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Light Emitting Surface (LES) [diameter]	CCT (K)	CRI (Color Rendering Index)
ams-OSRAM USA INC. LE CW E3A-MYPY-SRTU	2.53 mm	20.8 V	2.11 mm	2.11 mm	120 °	Flat	LED Module	Starboard	19.9 mm	1 A
ams-OSRAM USA INC. LE CW E3B-NYPZ-QRRU	5.25 mm	20.8 V			130 °	Flat	LED Module	Starboard	19.9 mm	1 A	Warm White	36 lm/W	710 lm	520 lm	330 lm	2 mm	3500 K	80
ams-OSRAM USA INC. LE CW E3A-MXPX-URVU	2.53 mm	20.8 V	2.11 mm	2.11 mm	120 °	Flat	LED Module	Starboard	19.9 mm	1 A
ams-OSRAM USA INC. LE CW E3B-NYPZ-SRTU	5.25 mm	20.8 V			130 °	Flat	LED Module	Starboard	19.9 mm	1 A	Warm White	36 lm/W	710 lm	520 lm	330 lm	2 mm		80
ams-OSRAM USA INC. LE CW E3B-NXPY-URVU	5.25 mm	20.8 V			130 °	Flat	LED Module	Starboard	19.9 mm	1 A	Warm White	31 lm/W		445 lm		2 mm	2700 K	80
ams-OSRAM USA INC. LE CW E3A-MZPY-ORPU	2.53 mm	20.8 V	2.11 mm	2.11 mm	120 °	Flat	LED Module	Starboard	19.9 mm	1 A
ams-OSRAM USA INC. LE CW E3A-MZPY-QRRU	2.53 mm	20.8 V	2.11 mm	2.11 mm	120 °	Flat	LED Module	Starboard	19.9 mm	1 A
ams-OSRAM USA INC. LE CW E3B-NZQX-MRNU	5.25 mm	20.8 V			130 °	Flat	LED Module	Starboard	19.9 mm	1 A	Neutral White	42 lm/W		605 lm		2 mm		80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Ostar White, Neutral Starboard
