903-586P-71A

Active

Amphenol RF

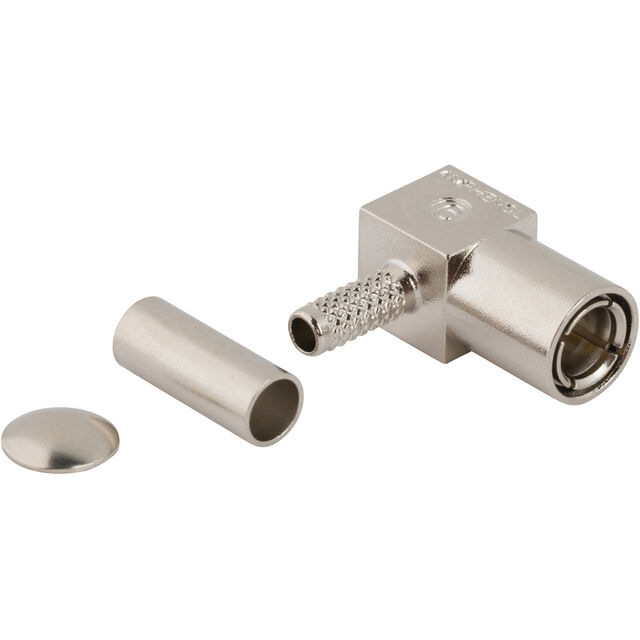

CONN SMB PLUG R/A 75 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB PLUG R/A 75 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	903-586P-71A

Body Finish	Nickel
Body Material	Zinc Die Cast
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	75 Ohms
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Impedance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Cable Group	Body Material	Housing Color	Contact Termination	Mating Cycles	Center Contact Material	Shield Termination	Number of Ports	Insertion Loss	Fastening Type	Connector Style	Dielectric Material	Center Contact Plating	Frequency - Max [Max]	Body Finish
Amphenol RF 903-586P-71A	75 Ohms	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Female Socket Plug	188 188A 316 LMR-100 M17/119-RG174 RG-174	Zinc Die Cast	Silver	Solder	500	Beryllium Copper	Crimp	1	0.6 dB	Snap-On	SMB	Polytetrafluoroethylene (PTFE)	Gold	10 GHz	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line), Right Angle Solder
