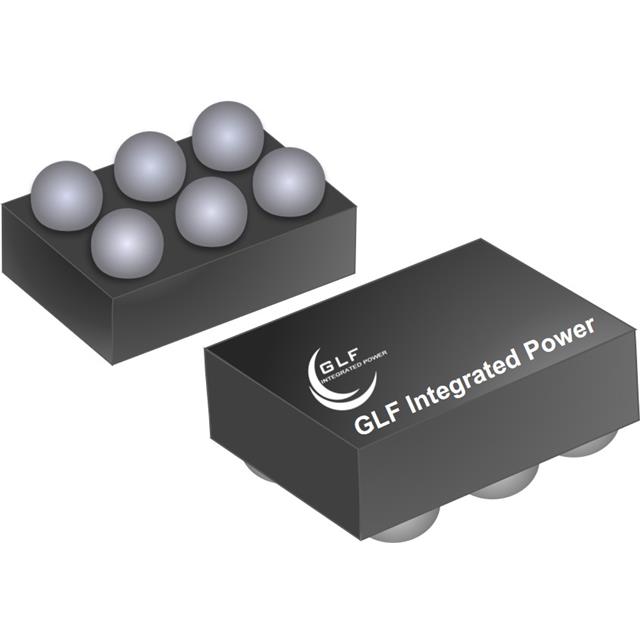

GLF72525
ActiveGLF Integrated Power
4A NMOS LOAD SWITCH WITH TRCB AN
Deep-Dive with AI
Search across all available documentation for this part.
GLF72525
ActiveGLF Integrated Power
4A NMOS LOAD SWITCH WITH TRCB AN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GLF72525 |
|---|---|
| Current - Output (Max) [Max] | 4 A |
| Fault Protection | Reverse Current |
| Features | Load Discharge |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | N-Channel |
| Package / Case | 6-UFBGA, WLCSP |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 9 mOhm |
| Supplier Device Package | 6-WLCSP |
| Supplier Device Package [x] | 1.47 |
| Supplier Device Package [y] | 0.97 |
| Switch Type | General Purpose |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.80 | |
| 20 | $ 0.70 | |||
| 30 | $ 0.66 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.31 | |||
| 3000 | $ 0.29 | |||
| 6000 | $ 0.28 | |||
Description
General part information
GLF72525 Series
Power Switch/Driver 1:1 N-Channel 4A 6-WLCSP (1.47x0.97)
Documents
Technical documentation and resources
No documents available
