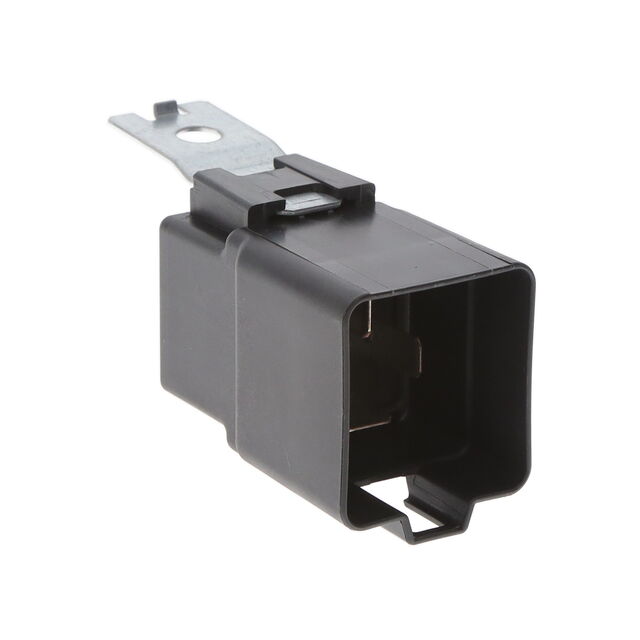

1-1414122-0
ActiveTE Connectivity Potter & Brumfield Relays
V23136J1004X050
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1414122-0
ActiveTE Connectivity Potter & Brumfield Relays
V23136J1004X050
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1414122-0 |
|---|---|
| Coil Current | 133.3 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 70 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1.6 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Switching Voltage [Max] | 14 VDC |
| Termination Style | Plug In, Multiple Sizes, Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.08 | |
| 10 | $ 9.68 | |||
| 25 | $ 9.17 | |||
| 50 | $ 8.81 | |||
| 100 | $ 8.46 | |||
| 250 | $ 8.01 | |||
| 500 | $ 7.69 | |||
| 1000 | $ 7.39 | |||
Description
General part information
1-1414122 Series
V23136J1004X050
