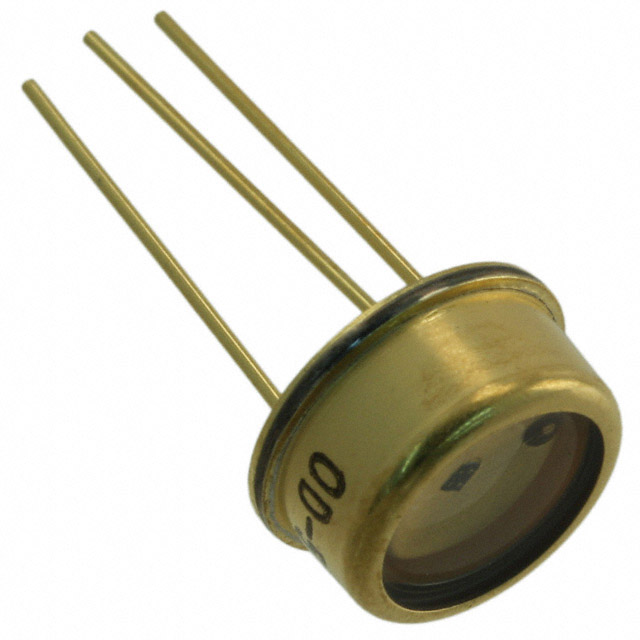

OD-624L
ActiveOpto Diode Corp
LED 635NM HI VIS 635NM RED TO-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OD-624L
ActiveOpto Diode Corp
LED 635NM HI VIS 635NM RED TO-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OD-624L |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 500 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Top View |
| Package / Case | TO-39-3 Metal Can, TO-205AD |
| Type | Visible |
| Viewing Angle | 7 ° |
| Voltage - Forward (Vf) (Typ) | 2.3 V |
| Wavelength | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 30.04 | |
| 10 | $ 23.52 | |||
| 80 | $ 20.55 | |||
| 440 | $ 18.85 | |||
Description
General part information
OD-624 Series
Visible Emitter 635nm 2.3V 500mA 7° TO-205AD, TO-39-3 Metal Can
