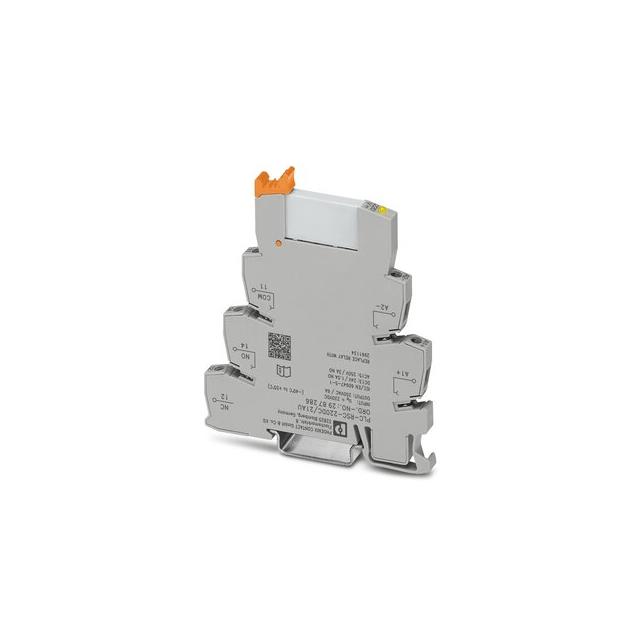

2987286
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 10MA 60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2987286
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 10MA 60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2987286 |
|---|---|
| Approval Agency | cULus, DNV, UL, EAC |
| Coil Current | 3 mA |
| Coil Resistance | 20 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 60 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 10 mA |
| Features | Socket Included |
| Mounting Type | DIN Rail |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage | 36 VDC, 30 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 37.66 | |
Description
General part information
29872 Series
General Purpose Relay SPDT (1 Form C) DIN Rail
Documents
Technical documentation and resources
