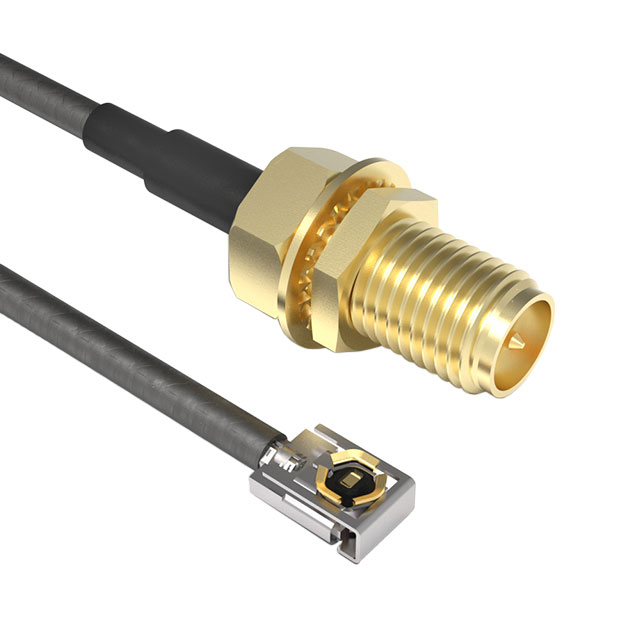

CABLE 333 RF-220-A-2
ActiveGCT
CBL ASY MHF1 LK-RPSMA J-P 8.661"
Deep-Dive with AI
Search across all available documentation for this part.
CABLE 333 RF-220-A-2
ActiveGCT
CBL ASY MHF1 LK-RPSMA J-P 8.661"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 333 RF-220-A-2 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | IPEX MHFI LK (Locking) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Frequency - Max [Max] | 3 GHz |
| Length | 8.661 in |
| Length | 220 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.12 | |
| 10 | $ 5.51 | |||
| 25 | $ 5.19 | |||
| 50 | $ 5.06 | |||
| 100 | $ 4.93 | |||
| 250 | $ 4.69 | |||
Description
General part information
CABLE 333 Series
Cable Assembly Coaxial IPEX MHF1 LK to RP-SMA 1.37mm OD Coaxial Cable 8.661" (220.00mm)
