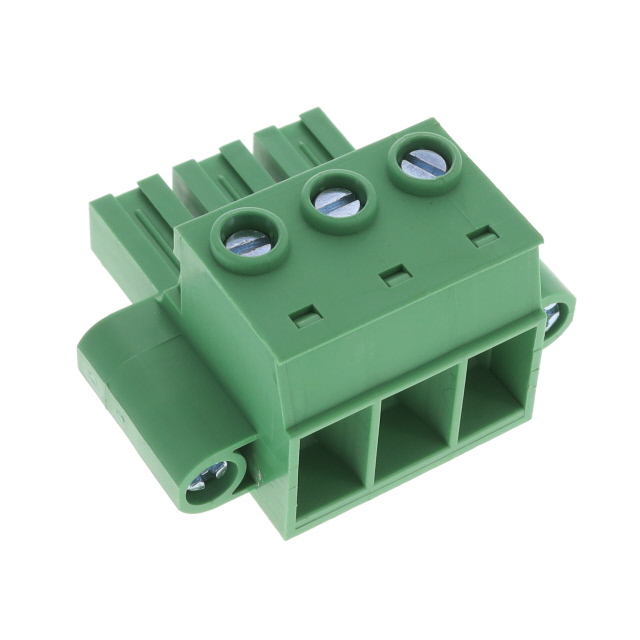

EV0361510000G

Active

Amphenol Anytek

TERM BLOCK PLUG 3POS STR 10.16MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EV0361510000G

Active

Amphenol Anytek

TERM BLOCK PLUG 3POS STR 10.16MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EV0361510000G

Color	Green
Contact Material	Copper
Contact Mating Finish	Tin
Current - IEC	76 A
Current - UL	55 A
Features	Mating Flange
Housing Material	Thermoplastic
Insulation Height	1.024 "
Insulation Height	26.01 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	10.16 mm
Pitch [x]	0.4 in
Positions Per Level	3
Screw Size	M4.5
Termination Style	Screw
Torque - Screw	1.18 Nm
Torque - Screw	10.4 Lb-In
Type	Plug, Female Sockets
Voltage - IEC	1 kV
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	20 AWG
Wire Gauge or Range - AWG [Min]	6 AWG
Wire Gauge or Range - mm˛ [Max]	16 mm˛
Wire Gauge or Range - mm˛ [Min]	0.5 mm˛
Wire Strip Length [Max]	14 mm
Wire Strip Length [Min]	13 mm

EV Series

Part	Screw Size	Voltage - UL	Torque - Screw	Torque - Screw	Number of Positions	Contact Mating Finish	Current - IEC	Type	Number of Levels	Current - UL	Positions Per Level	Color	Material Flammability Rating	Contact Material	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Strip Length [Max]	Wire Strip Length [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Mounting Type	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Housing Material	Voltage - IEC	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
Amphenol Anytek EV1161500000G	M4.5	300 V	1.18 Nm	10.4 Lb-In	11	Tin	76 A	Plug Female Sockets	1	55 A	11	Green	UL94 V-0	Copper	0.5 mm²	16 mm²	14 mm	13 mm	-40 °C	115 °C	1.024 "	26.01 mm	10.16 mm	0.4 in	Free Hanging (In-Line)	Screw	20 AWG	6 AWG	Thermoplastic	1 kV
Amphenol Anytek EV1061510000G	M4.5	300 V	1.18 Nm	10.4 Lb-In	10	Tin	76 A	Plug Female Sockets	1	55 A	10	Green	UL94 V-0	Copper	0.5 mm²	16 mm²	14 mm	13 mm	-40 °C	115 °C	1.024 "	26.01 mm	10.16 mm	0.4 in	Free Hanging (In-Line)	Screw	20 AWG	6 AWG	Thermoplastic	1 kV	Mating Flange
Amphenol Anytek EV0861510000G	M4.5	300 V	1.18 Nm	10.4 Lb-In	8	Tin	76 A	Plug Female Sockets	1	55 A	8	Green	UL94 V-0	Copper	0.5 mm²	16 mm²	14 mm	13 mm	-40 °C	115 °C	1.024 "	26.01 mm	10.16 mm	0.4 in	Free Hanging (In-Line)	Screw	20 AWG	6 AWG	Thermoplastic	1 kV	Mating Flange
Amphenol Anytek EV1061500000G	M4.5	300 V	1.18 Nm	10.4 Lb-In	10	Tin	76 A	Plug Female Sockets	1	55 A	10	Green	UL94 V-0	Copper	0.5 mm²	16 mm²	14 mm	13 mm	-40 °C	115 °C	1.024 "	26.01 mm	10.16 mm	0.4 in	Free Hanging (In-Line)	Screw	20 AWG	6 AWG	Thermoplastic	1 kV
Amphenol Anytek EV1261500000G	M4.5	300 V	1.18 Nm	10.4 Lb-In	12	Tin	76 A	Plug Female Sockets	1	55 A	12	Green	UL94 V-0	Copper	0.5 mm²	16 mm²	14 mm	13 mm	-40 °C	115 °C	1.024 "	26.01 mm	10.16 mm	0.4 in	Free Hanging (In-Line)	Screw	20 AWG	6 AWG	Thermoplastic	1 kV
Amphenol Anytek EV0961510000G	M4.5	300 V	1.18 Nm	10.4 Lb-In	9	Tin	76 A	Plug Female Sockets	1	55 A	9	Green	UL94 V-0	Copper	0.5 mm²	16 mm²	14 mm	13 mm	-40 °C	115 °C	1.024 "	26.01 mm	10.16 mm	0.4 in	Free Hanging (In-Line)	Screw	20 AWG	6 AWG	Thermoplastic	1 kV	Mating Flange
Amphenol Anytek EV0561500000G	M4.5	300 V	1.18 Nm	10.4 Lb-In		Tin	76 A	Plug Female Sockets	1	55 A	5	Green	UL94 V-0	Copper	0.5 mm²	16 mm²	14 mm	13 mm	-40 °C	115 °C	1.024 "	26.01 mm	10.16 mm	0.4 in	Free Hanging (In-Line)	Screw	20 AWG	6 AWG	Thermoplastic	1 kV
Amphenol Anytek EV0361510000G	M4.5	300 V	1.18 Nm	10.4 Lb-In		Tin	76 A	Plug Female Sockets	1	55 A	3	Green	UL94 V-0	Copper			14 mm	13 mm	-40 °C	115 °C	1.024 "	26.01 mm	10.16 mm	0.4 in	Free Hanging (In-Line)	Screw	20 AWG	6 AWG	Thermoplastic	1 kV	Mating Flange	16 mm˛	0.5 mm˛
Amphenol Anytek EV0461510000G	M4.5	300 V	1.18 Nm	10.4 Lb-In	4	Tin	76 A	Plug Female Sockets	1	55 A	4	Green	UL94 V-0	Copper	0.5 mm²	16 mm²	14 mm	13 mm	-40 °C	115 °C	1.024 "	26.01 mm	10.16 mm	0.4 in	Free Hanging (In-Line)	Screw	20 AWG	6 AWG	Thermoplastic	1 kV	Mating Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.90
		10	$ 3.73
		100	$ 3.04
		1992	$ 2.20

Description

General part information

EV Series

3 Position Terminal Block Plug, Female Sockets 0.400" (10.16mm) 180° Free Hanging (In-Line)
