PAT-03-HC-B-20-S-9

Active

FiberSource, Inc

LCU-SCU SM 2MM YELLOW SIMPLEX 3M

Search across all available documentation for this part.

Active

FiberSource, Inc

LCU-SCU SM 2MM YELLOW SIMPLEX 3M

Technical Specifications

Parameters and characteristics for this part

Part	Color - Cable	Color - Connectors	2nd Connector	Return Loss	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	Type	Insertion Loss	Cable Diameter [diameter]	Cable Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Fiber Type
FiberSource, Inc PAT-03-HH-B-20-D-9	Yellow	Blue	LC Duplex	55 dB	85 °C	-40 °C	LC Duplex	Duplex Singlemode	0.3 dB	2 mm	0.08 in	3 m	9.8 ft
FiberSource, Inc PAT-03-HD-B-20-D-9	Yellow	Blue	SC/APC	65 dB	85 °C	-40 °C	LC/UPC	Duplex Singlemode	0.3 dB	2 mm	0.08 in	3 m	9.8 ft
FiberSource, Inc PAT-03-CC-B-20-D-9	Yellow	Blue	SC Duplex	55 dB	85 °C	-40 °C	SC Duplex	Duplex Singlemode	0.3 dB	2 mm	0.08 in	3 m	9.8 ft
FiberSource, Inc PAT-03-DD-B-20-D-9	Yellow	Blue	SC Duplex	65 dB	85 °C	-40 °C	SC Duplex	Duplex Singlemode	0.3 dB	2 mm	0.08 in	3 m	9.8 ft
FiberSource, Inc PAT-03-NN-F-20-D-A		Blue	LC Duplex		85 °C	-40 °C	LC Duplex	Duplex Multimode OM3		2 mm	0.08 in	3 m	9.8 ft	50/125
FiberSource, Inc PAT-03-HC-B-20-S-9	Yellow		SC/UPC	55 dB 65 dB	85 °C	-40 °C	LC/UPC	Simplex Singlemode	0.2 dB	2 mm	0.08 in	3 m	9.8 ft
FiberSource, Inc PAT-03-JD-B-20-D-9	Yellow	Blue	SC/APC	65 dB	85 °C	-40 °C	LC/APC	Duplex Singlemode	0.3 dB	2 mm	0.08 in	3 m	9.8 ft
FiberSource, Inc PAT-03-NL-F-20-D-A		Blue	SC Duplex		85 °C	-40 °C	LC Duplex	Duplex Multimode OM3		2 mm	0.08 in	3 m	9.8 ft	50/125

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

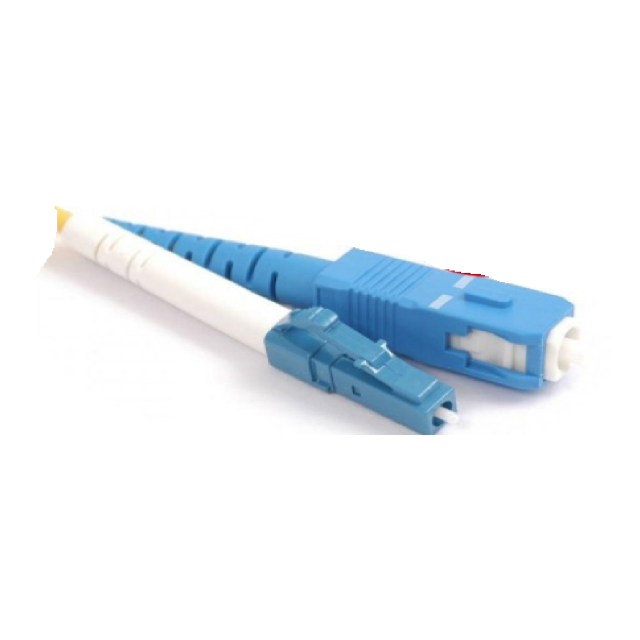

Cable Fiber Optic LC/UPC To SC/UPC 9.8' (3.0m)

Technical documentation and resources
