345-071-523-178
ActiveEDAC Inc.

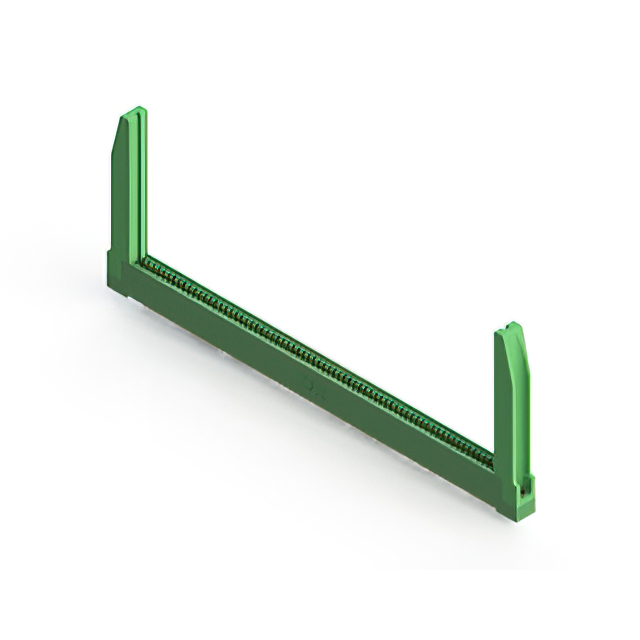

CONN EDGE SINGLE FML 71POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-071-523-178
ActiveEDAC Inc.
CONN EDGE SINGLE FML 71POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-071-523-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 71 |
| Number of Positions/Bay/Row [custom] | 71 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-071 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Rows | Number of Positions | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Color | Mounting Type | Read Out | Contact Finish | Material - Insulation | Termination Rows | Pitch [x] | Pitch [x] | Gender | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Cantilever | Green | Through Hole | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Solder | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Cantilever | Green | Through Hole | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Solder | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Green | Through Hole | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Solder | Card Guides | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | Cantilever | Green | Through Hole Right Angle | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Wire Wrap | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Cantilever | Green | Through Hole | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Wire Wrap | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Green | Through Hole | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Solder | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Cantilever | Green | Through Hole | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Solder | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Green | Through Hole Right Angle | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Wire Wrap | Card Guides | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Cantilever | Green | Through Hole | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Wire Wrap | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 71 | 71 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Cantilever | Green | Through Hole | Single | Gold | Polyester Thermoplastic | 1 | 2.54 mm | 0.1 in | Female | Solder | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 28.45 | |
Description
General part information
345-071 Series
71 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
