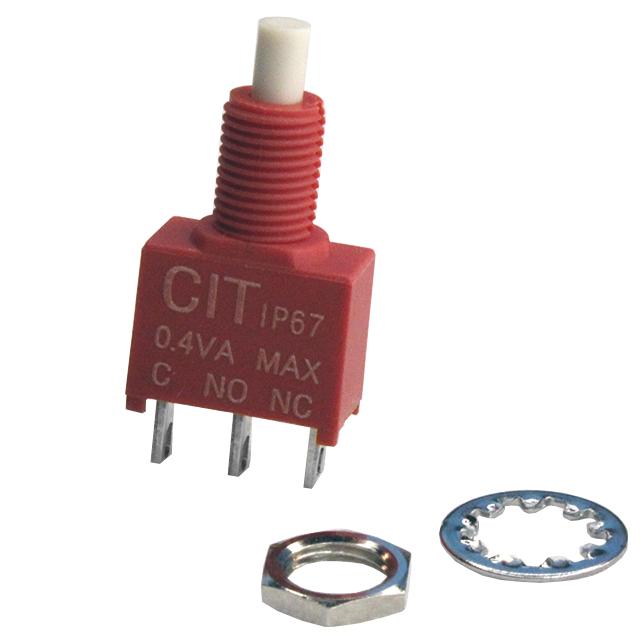

ASP11TEBQ

Active

CIT Relay and Switch

SWITCH PB SPDT 3A 120V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPDT 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	ASP11TEBQ

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Switch Function	Color - Actuator/Cap	Actuator Marking	Circuit	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Electrical Life	Type	Voltage Rating - AC	Mounting Type	Ingress Protection	Termination Style	Current Rating (Amps)	Voltage Rating - DC
CIT Relay and Switch ASP11TEBQ	On-Mom	White	No Marking	SPDT	0.25 in	-30 ░C	85 °C	Round Plunger	50000 Cycles	Standard	120 V	Panel Mount Rear	IP67 - Dust Tight Waterproof	Solder Lug	3 A	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear
