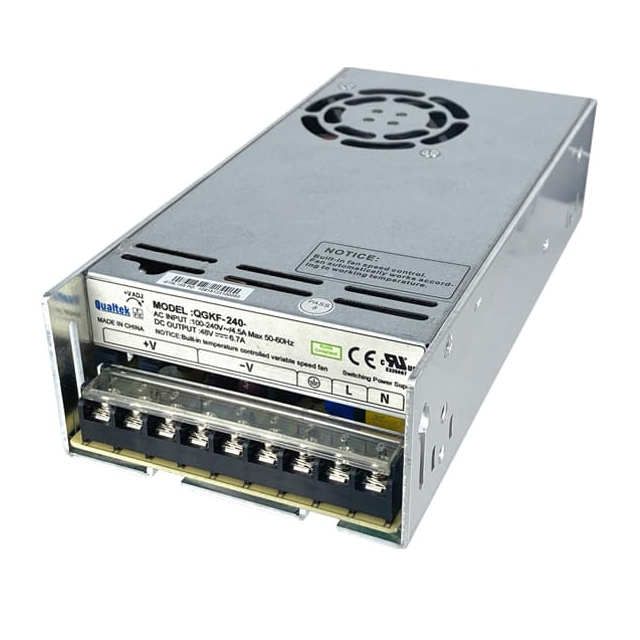

QGKF-240-5

Active

Qualtek

AC/DC CONVERTER 5V 240W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 5V 240W

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Applications	Current - Output 1	Power (Watts)	Voltage - Isolation	Type	Efficiency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Qualtek QGKF-240-12	CB CE cURus	ITE (Commercial)	20 A	240 W	3000 V	Enclosed	84 %	Chassis Mount	-25 °C	70 °C	1	12 V	50 mm	7.83 in	3.9 in	1.97 "	99 mm	199 mm
Qualtek QGKF-240-48	CB CE cURus	ITE (Commercial)	5 A	240 W	3000 V	Enclosed	87.5 %	Chassis Mount	-25 °C	70 °C	1	48 V	50 mm	7.83 in	3.9 in	1.97 "	99 mm	199 mm
Qualtek QGKF-240-5	CB CE cURus	ITE (Commercial)	48 A	240 W	3000 V	Enclosed	79 %	Chassis Mount	-25 °C	70 °C	1	5 V	50 mm	7.83 in	3.9 in	1.97 "	99 mm	199 mm
Qualtek QGKF-240-24	CB CE cURus	ITE (Commercial)	10 A	240 W	3000 V	Enclosed	86 %	Chassis Mount	-25 °C	70 °C	1	24 V	50 mm	7.83 in	3.9 in	1.97 "	99 mm	199 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 89.94

General part information

Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
