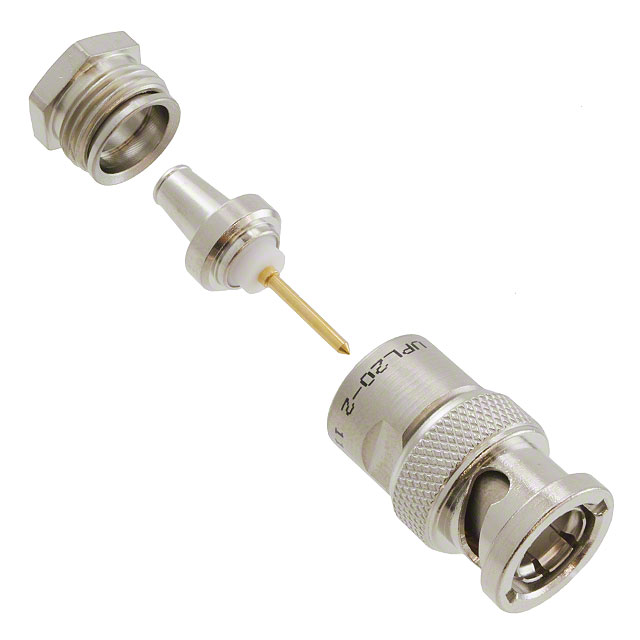

UPL20-2

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75 OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Connector Style	Contact Termination	Mounting Type	Dielectric Material	Voltage Rating	Impedance	Number of Ports	Fastening Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Finish	Connector Type	Housing Color	Body Material	Frequency - Max [Max]	Cable Group
Cinch Connectivity Solutions Trompeter UPL20-6A	BNC	Solder	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500 V	75 Ohms	1	Bayonet Lock	Wrench Clamp	-65 ░C	165 °C	Gold	Nickel	Male Pin Plug	Silver	Brass	4 GHz
Cinch Connectivity Solutions Trompeter UPL20-2	BNC	Crimp	Free Hanging (In-Line)			75 Ohms	1	Bayonet Lock	Wrench Clamp			Gold	Nickel	Male Pin Plug	Silver	Brass	4 GHz	RG-59

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.30

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
