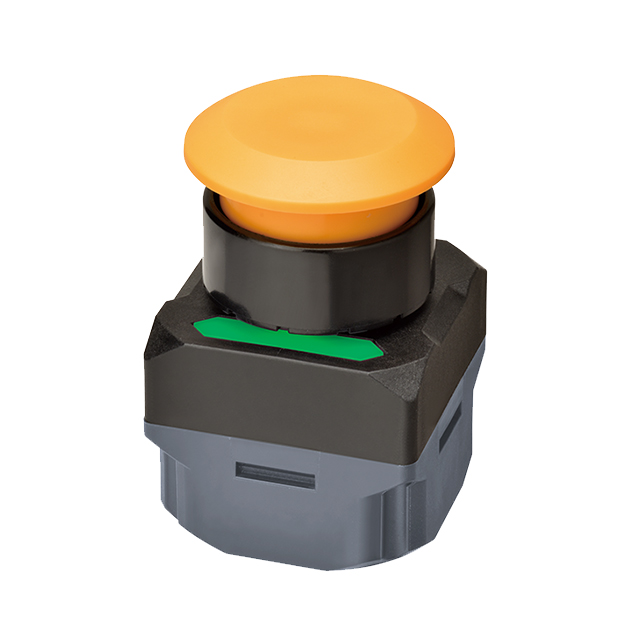

A2W-TC-WC1 US1YB

Active

Omron Electronics Inc-EMC Div

SWITCH PB MUSHRM YEL WIRELESS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A2W-TC-WC1 US1YB

Active

Omron Electronics Inc-EMC Div

SWITCH PB MUSHRM YEL WIRELESS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A2W-TC-WC1 US1YB

Actuator Marking	No Marking
Actuator Type	Mushroom, Button, Round
Color - Actuator/Cap	Yellow
Electrical Life	1000000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wireless
Type	Standard

A2W-TC Series

Part	Actuator Marking	Termination Style	Electrical Life	Mechanical Life	Ingress Protection	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Actuator Type	Mounting Type	Type	Color - Actuator/Cap
Omron Electronics Inc-EMC Div A2W-TC-WC1 US1BY	No Marking	Wireless	1000000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-10 °C	Button Mushroom Round	Chassis Mount	Standard	Black
Omron Electronics Inc-EMC Div A2W-TC-WC1 US2BY	No Marking	Wireless	1000000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-10 °C	Button Full Guard Round	Chassis Mount	Standard	Black
Omron Electronics Inc-EMC Div A2W-TC-WC1 US2AB	No Marking	Wireless	1000000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-10 °C	Button Full Guard Round	Chassis Mount	Standard	Blue
Omron Electronics Inc-EMC Div A2W-TC-WC1 US2GB	No Marking	Wireless	1000000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-10 °C	Button Full Guard Round	Chassis Mount	Standard	Green
Omron Electronics Inc-EMC Div A2W-TC-WC1 US2BR	No Marking	Wireless	1000000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-10 °C	Button Full Guard Round	Chassis Mount	Standard	Black
Omron Electronics Inc-EMC Div A2W-TC-WC1 US1YB	No Marking	Wireless	1000000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-10 °C	Button Mushroom Round	Chassis Mount	Standard	Yellow
Omron Electronics Inc-EMC Div A2W-TC-WC1 US1RB	No Marking	Wireless	1000000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-10 °C	Button Mushroom Round	Chassis Mount	Standard	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 281.70
		10	$ 250.97
		25	$ 233.90

Description

General part information

A2W-TC Series

Pushbutton Switch Standard Chassis Mount
