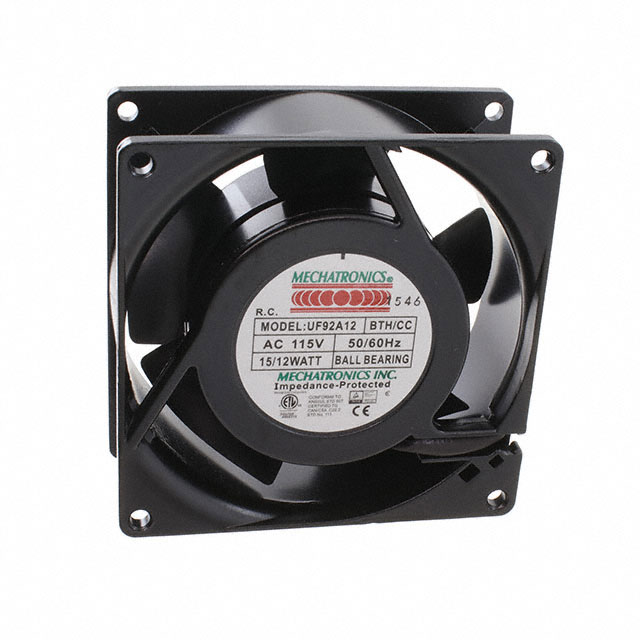

UF92A12-BTHR-CC

Active

Mechatronics Bearing Group

FAN AXIAL 92X38MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet

UF92A12-BTHR-CC

Active

Mechatronics Bearing Group

FAN AXIAL 92X38MM 115VAC TERM

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF92A12-BTHR-CC

Air Flow	1.29 mł/min
Air Flow	46 CFM
Approval Agency	CE, ETL, TUV, cETL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Conformal Coating
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	38 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	12 W
RPM	3300 RPM
Static Pressure	0.32 in H2O
Static Pressure	79.7 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	449.96 g
Weight	0.992 lb
Width [y]	38 mm

UF92A Series

Part	Width [y]	Voltage - Rated	Static Pressure	Static Pressure	RPM	Bearing Type	Weight	Weight	Noise	Termination	Approval Agency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Fan Type	Material - Blade	Material - Frame	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated [Max]	Voltage - Rated [Min]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Features
Mechatronics Bearing Group UF92A12-BWHR	38 mm	115 VAC	0.32 in H2O	79.7 Pa	3300 RPM	Ball	449.96 g	0.992 lb	38 dB(A)	2 Wire Leads	CE cETL ETL TUV	12 W	70 °C	70 °C	-40 °C	-40 °C	1.29 mł/min	46 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	Aluminum
Mechatronics Bearing Group UF92AM12-BWHR-F	38 mm	115 VAC	0.3 in H2O	74.7 Pa	3200 RPM	Ball	430.01 g	0.948 lb	42 dB	2 Wire Leads	CE cUL TUV UL	11 W	90 °C	90 °C	-40 °C	-40 °C	1.43 mł/min	51 CFM	Tubeaxial	Metal	Aluminum	120 mA	92.5 mm	92.5 mm
Mechatronics Bearing Group UF92AM23-BTHR-F	38 mm	230 VAC	0.3 in H2O	74.7 Pa	3300 RPM	Ball	430.01 g	0.948 lb	42 dB	2 Terminals	CE cUL TUV UL	11 W	90 °C	90 °C	-40 °C	-40 °C	1.43 mł/min	51 CFM	Tubeaxial	Metal		0.09 A	92.5 mm	92.5 mm
Mechatronics Bearing Group UF92A23-BWHR	38 mm	230 VAC	0.32 in H2O	79.7 Pa	3300 RPM	Ball	449.96 g	0.992 lb	38 dB(A)	2 Wire Leads	CE cETL ETL TUV	12 W	70 °C	70 °C	-40 °C	-40 °C	1.29 mł/min	46 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	Aluminum	0.09 A
Mechatronics Bearing Group UF92AM12/23-BWHR	38 mm		0.3 in H2O	74.7 Pa	3200 RPM	Ball	430.01 g	0.948 lb	42 dB	2 Wire Leads	CE cUL TUV UL	11 W	90 °C	90 °C	-40 °C	-40 °C	1.43 mł/min	51 CFM	Tubeaxial	Metal	Aluminum		92.5 mm	92.5 mm	230 VAC	115 VAC	0.12 A	0.06 A	Dual Voltage
Mechatronics Bearing Group UF92A12-BTHR-CC	38 mm	115 VAC	0.32 in H2O	79.7 Pa	3300 RPM	Ball	449.96 g	0.992 lb	38 dB(A)	2 Terminals	CE cETL ETL TUV	12 W	70 °C	70 °C	-40 °C	-40 °C	1.29 mł/min	46 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)									Conformal Coating

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.60
		10	$ 23.38
		25	$ 22.49
		50	$ 21.01
		100	$ 19.38
		250	$ 19.09
		500	$ 18.94

Description

General part information

UF92A Series

Fan Tubeaxial 115VAC Square - 92mm L x 92mm H Ball 46.0 CFM (1.29m³/min) 2 Terminals

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet
