Q2-F-3/4-01-SS200FT

Active

Qualtek

HEATSHRK BLK 3/4X1" 50=50PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRK BLK 3/4X1" 50=50PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-3/4-01-SS200FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.375 in
Inner Diameter - Recovered [diameter]	9.53 mm
Inner Diameter - Supplied [diameter]	19.1 mm
Inner Diameter - Supplied [diameter]	0.752 in
Length	25.4 mm, 38.1 mm, 50.8 mm, 152.4 mm, 19.05 mm
Length	0.083 ft, 0.125 ', 0.167 ', 0.062 '
Length	1 in, 1.5 ", 2 ", 6 ", 0.75 "
Length	Enter Number of Feet in Order Quantity
Length	0.5 '
Length [x]	4 "
Length [x]	0.333 ft, 200 ft
Length [x]	101.6 mm, 61 m
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.027 "
Recovered Wall Thickness	0.69 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Spool Size	61 m
Spool Size	200 '
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Material	Features	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life	Color	Type	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Length	Spool Size	Spool Size	Length [x]	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]
Qualtek Q2-F-3/4-01-QX15FT	Polyolefin (PO)	Flame Retardant	-50 °F -10 °C	40 °C	144 Months	Black	Tubing Flexible	2 to 1	0.027 "	0.69 mm	15 ft	4.6 m	70 °C	0.375 in	9.53 mm	135 °C	-55 °C
Qualtek Q2-F-3/4-01-QB48IN-5	Polyolefin (PO)	Flame Retardant	-50 °F -10 °C	40 °C	144 Months	Black	Tubing Flexible	2 to 1	0.027 "	0.69 mm	4 ft	1.22 m	70 °C	0.375 in	9.53 mm	135 °C	-55 °C
Qualtek Q2-F-3/4-01-SS200FT	Polyolefin (PO)	Flame Retardant	-50 °F -10 °C	40 °C	144 Months	Black	Tubing Flexible	2 to 1	0.027 "	0.69 mm	0.333 ft 200 ft	61 m 101.6 mm	70 °C	0.375 in	9.53 mm	135 °C	-55 °C	19.05 mm 25.4 mm 38.1 mm 50.8 mm 152.4 mm	0.062 ' 0.083 ft 0.125 ' 0.167 '	0.75 " 1 in 1.5 " 2 " 6 "	61 m	200 '	4 "	Enter Number of Feet in Order Quantity	0.5 '	19.1 mm	0.752 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

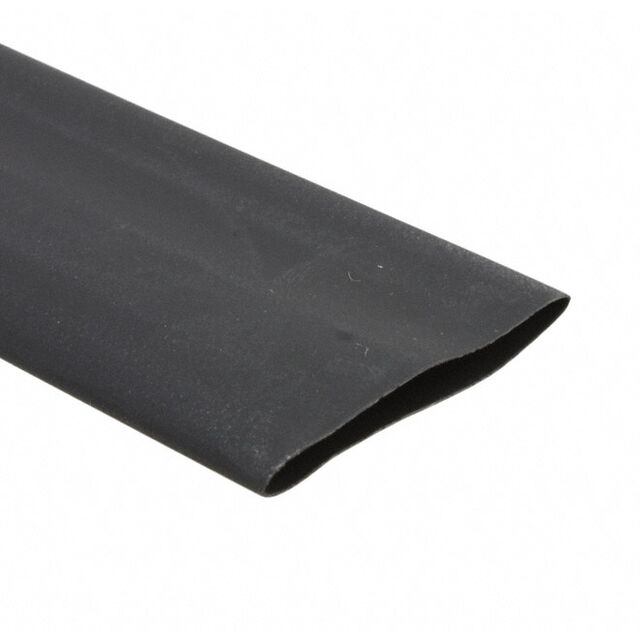

Heat Shrink Tubing, Flexible 0.752" (19.10mm) 2 to 1 Black 0.083' (25.40mm, 1.00")
