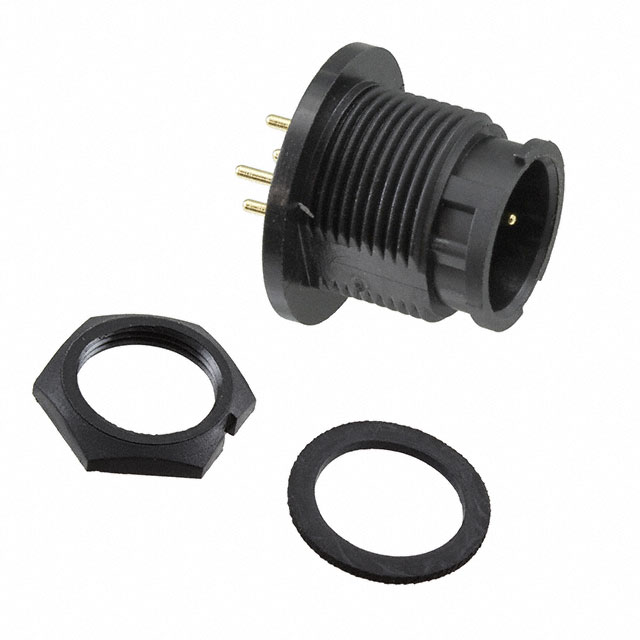

7281-4PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7281-4PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	600 V

Part	Mounting Feature	Ingress Protection	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Backshell Material, Plating	Mounting Type	Applications	Termination	Current Rating (Amps)	Fastening Type	Primary Material	Orientation	Shielding	Voltage Rating	Number of Positions	Contact Finish - Mating
Conxall/Switchcraft 7281-4PG-300	Bulkhead - Front Side Nut	Weathertight	Male Pins Receptacle	-40 °C	115 °C	Black	Brass	Nylon Polyamide (PA)	Panel Mount Through Hole	Automotive Communication Systems Instrumentation	Solder	Varies by Wire Gauge	Bayonet Lock	Plastic	Keyed	Unshielded	600 V	4	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
