US1GE-TP

Obsolete

Micro Commercial Components

DIODE GEN PURP 400V 1A SMAE

Search across all available documentation for this part.

Obsolete

Micro Commercial Components

DIODE GEN PURP 400V 1A SMAE

Technical Specifications

Parameters and characteristics for this part

Specification	US1GE-TP

Capacitance @ Vr, F	20 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-50 °C

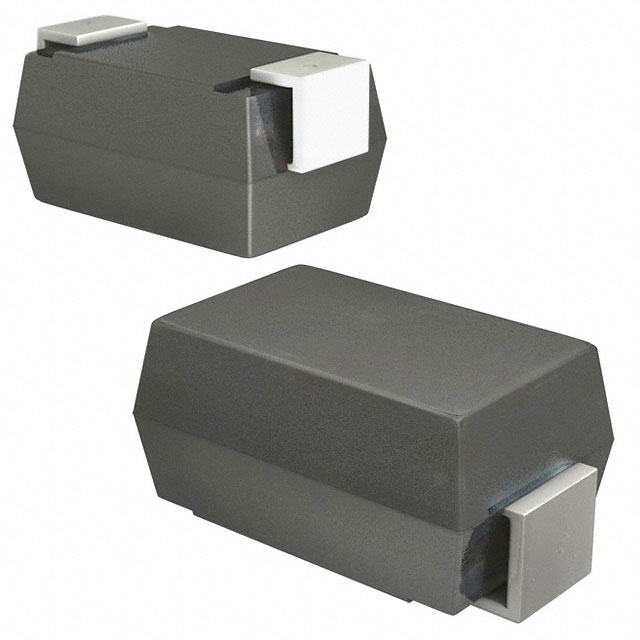

Package / Case	DO-214AC, SMA
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	SMAE
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Mounting Type	Current - Average Rectified (Io)	Technology	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If
Micro Commercial Components US1GFL-TP	10 µA	DO-221AC (SMA-FL)	Surface Mount	1 A	Standard	50 ns	400 V	DO-221AC SMA Flat Leads	200 mA 500 ns	150 °C	-65 C	20 pF	1.4 V
Micro Commercial Components US1GE-TP	10 µA	SMAE	Surface Mount	1 A	Standard	50 ns	400 V	DO-214AC SMA	200 mA 500 ns	150 °C	-50 °C	20 pF	1.4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 400 V 1A Surface Mount SMAE
