AP1153ADS33

Obsolete

Asahi Kasei Microdevices Corporation

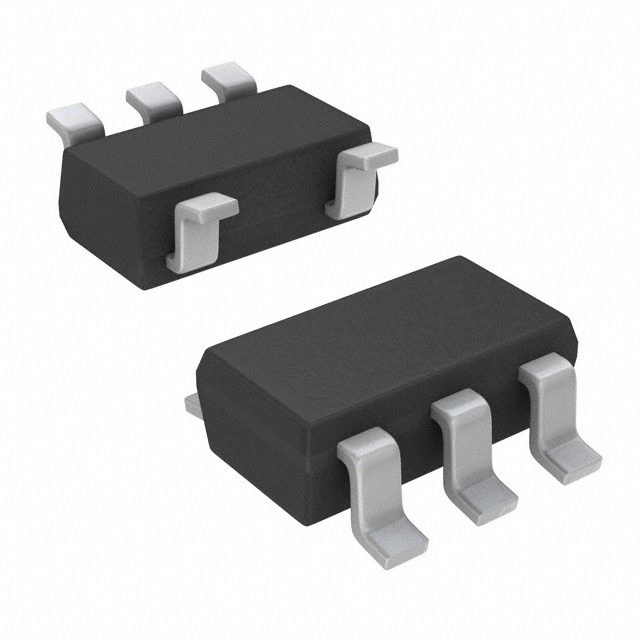

IC REG LINEAR 3.3V 100MA SOT23-5

Search across all available documentation for this part.

Obsolete

Asahi Kasei Microdevices Corporation

IC REG LINEAR 3.3V 100MA SOT23-5

Technical Specifications

Parameters and characteristics for this part

Specification	AP1153ADS33

Control Features	Enable
Current - Output	100 mA
Current - Quiescent (Iq)	145 µA
Current - Supply (Max) [Max]	3.3 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SC-74A, SOT-753
Protection Features	Short Circuit, Reverse Polarity, Over Current, Over Temperature
PSRR	80 dB
Supplier Device Package	SOT-23-5
Voltage - Input (Max) [Max]	14 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.36 V

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Voltage Dropout (Max) [Max]	Number of Regulators	PSRR	Voltage - Output (Min/Fixed)	Current - Output	Output Type	Protection Features	Current - Quiescent (Iq)	Supplier Device Package	Control Features	Package / Case	Current - Supply (Max) [Max]	Mounting Type
Asahi Kasei Microdevices Corporation AP1153ADS33	14 V	85 °C	-40 °C	Positive	0.36 V	1	80 dB	3.3 V	100 mA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit	145 µA	SOT-23-5	Enable	SC-74A SOT-753	3.3 mA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-5
