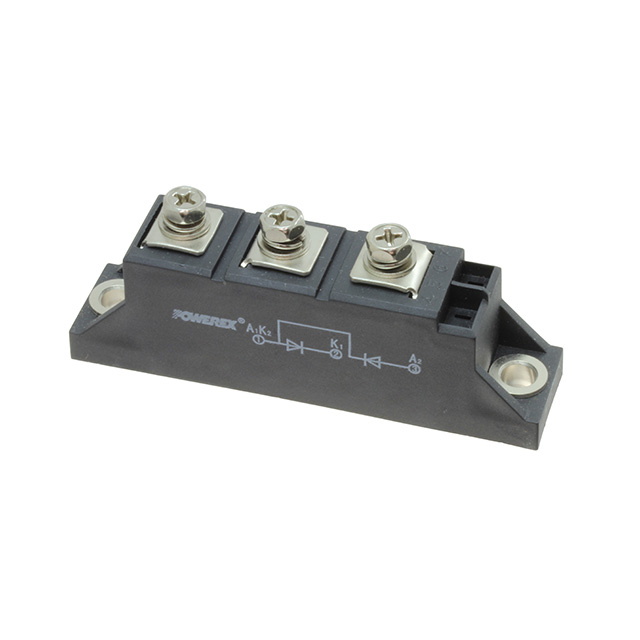

CD412099C

Active

Powerex Inc.

DIODE MOD GP 2000V 100A POWRBLOK

Search across all available documentation for this part.

Active

Powerex Inc.

DIODE MOD GP 2000V 100A POWRBLOK

Technical Specifications

Parameters and characteristics for this part

Specification	CD412099C

Current - Average Rectified (Io) (per Diode)	100 A
Current - Reverse Leakage @ Vr	12 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	POW-R-BLOK™ Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	POW-R-BLOK™ Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	2000 V
Voltage - Forward (Vf) (Max) @ If	1.65 V

Part	Mounting Type	Current - Average Rectified (Io) (per Diode)	Technology	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Package / Case
Powerex Inc. CD412099C	Chassis Mount	100 A	Standard	1 Pair Series Connection	1.65 V	POW-R-BLOK™ Module	12 mA	150 °C	-40 °C	2000 V	Standard Recovery >500ns	200 mA	POW-R-BLOK™ Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 2000 V 100A Chassis Mount POW-R-BLOK™ Module
