Technical Specifications
Parameters and characteristics for this part
| Specification | 1750485 |
|---|---|
| Cable Diameter [diameter] | 4.8 mm, 11 mm |
| Cable Diameter [diameter] | 0.433 in, 0.189 in |
| Color | Gray |
| Legend | Blank |
| Material | Polyamide (PA), Nylon |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Size [x] | 20 mm |
| Size [x] | 0.79 " |
| Size [y] | 0.31 " |
| Size [y] | 8 mm |
| Type | Wire Marker Carrier, Clip-On |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 100 | $ 4.16 | |
Description
General part information
GKM Series

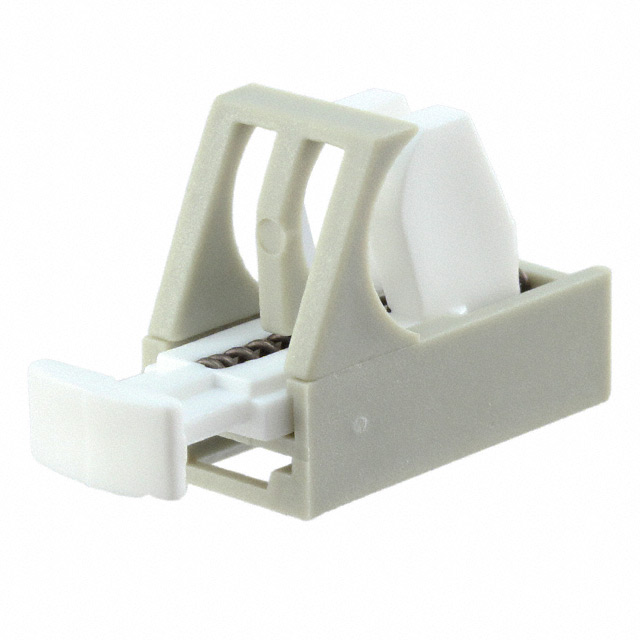

Wire Marker Carrier, Clip-On 0.79" W x 0.31" L (20.0mm x 8.0mm) Gray Polyamide (PA), Nylon
Documents
Technical documentation and resources
