TR9CH833T00CFR6B

Active

GlobTek, Inc.

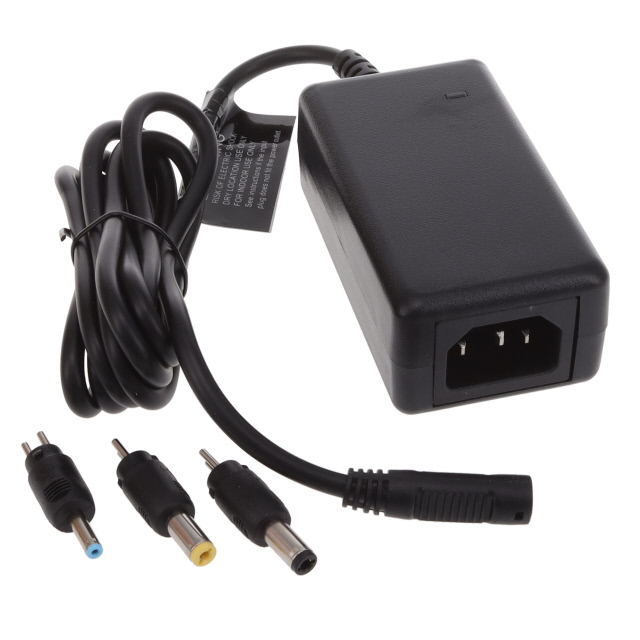

AC/DC DESKTOP ADAPTER 18V 15W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 18V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CH833T00CFR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, ETL, UL, CCC, cULus, NOM, FCC, BSMI, UKRSepro, LPS, cETLus, PSE, VCCI, CB, RCM, S-Mark, EAC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	830 mA
Efficiency	Level VI, CoC Tier 1
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	15 W
Region Utilized	International
Size / Dimension [x]	87 mm
Size / Dimension [x]	3.43 in
Size / Dimension [y]	1.83 in
Size / Dimension [y]	46.5 mm
Size / Dimension [z]	1.26 in
Size / Dimension [z]	32 mm
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	18 V

Part	Approval Agency	Power (Watts)	Form	Standard Number	Cord Length	Cord Length	Voltage - Output	Output Connector	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Applications	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Input Type	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector
GlobTek, Inc. TR9CH833T00CFR6B	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	15 W	Desktop (Class I)	60335-1 60601-1 60950-1 62368-1	1.5 m	59 in	18 V	1.3mm x 3.5mm Barrel Plug Kit	1.83 in	1.26 in	32 mm	87 mm	46.5 mm	3.43 in	CoC Tier 1 Level VI	Household Appliances ITE (Commercial) Medical	830 mA	90 VAC	264 VAC	75 mW	Cord	International	-20 C	40 °C	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.75

General part information

18V 15 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
