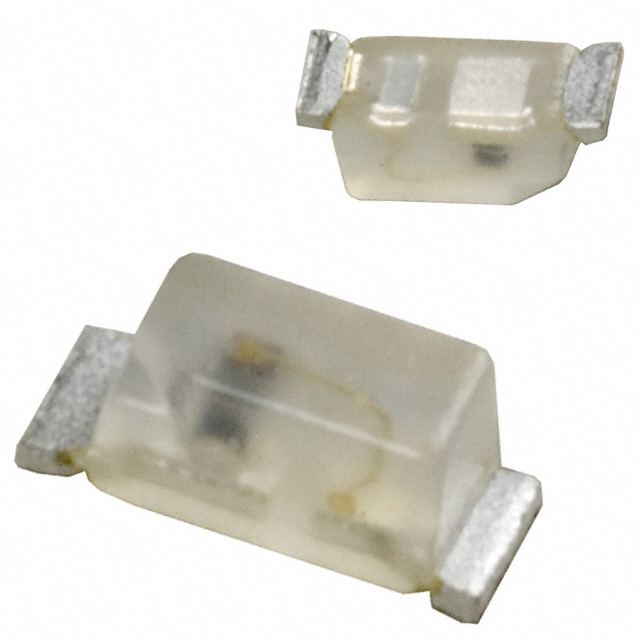

LY L29K-H1K2-26-Z
Activeams-OSRAM USA INC.
LED YELLOW DIFFUSED 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LY L29K-H1K2-26-Z
Activeams-OSRAM USA INC.
LED YELLOW DIFFUSED 0603 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LY L29K-H1K2-26-Z |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Color | White |
| Lens Size [x] | 1.3 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 7 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.7 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 160 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Dominant | 587 nm |
| Wavelength - Peak | 591 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.08 | |||
| Tape & Reel (TR) | 5000 | $ 0.08 | ||
| 10000 | $ 0.07 | |||
| 25000 | $ 0.06 | |||
| 50000 | $ 0.06 | |||
| 125000 | $ 0.06 | |||
Description
General part information
LYL29K Series
Yellow 587nm LED Indication - Discrete 1.8V 0603 (1608 Metric)
